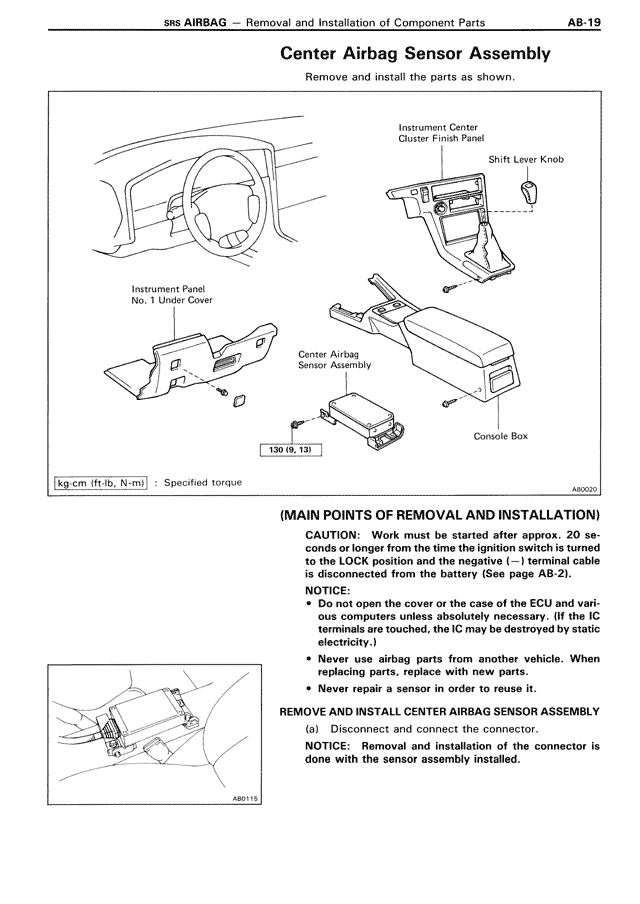

Center Airbag Sensor Assembly
Remove and install the parts as shown.
Instrument Center
Cluster Finish Panel
Shift Lever Knob
Instrument Panel
No. 1 Under Cover
Center Airbag
Sensor Assembly
Console Box
130 (10, 13)
kg·cm (ft·lb, N·m) : Specified torque
AB000I
(MAIN POINTS OF REMOVAL AND INSTALLATION)
CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the LOCK position and the negative (—) terminal cable is disconnected from the battery (See page AB-2).
NOTICE:
• Do not open the cover or the case of the ECU and various computers unless absolutely necessary. (If the IC terminals are touched, the IC may be destroyed by static electricity.)
• Never use airbag parts from another vehicle. When replacing parts, replace with new parts.
• Never repair a sensor in order to reuse it.
REMOVE AND INSTALL CENTER AIRBAG SENSOR ASSEMBLY
(a) Disconnect and connect the connector.
NOTICE: Removal and installation of the connector is done with the sensor assembly installed.
A80115
