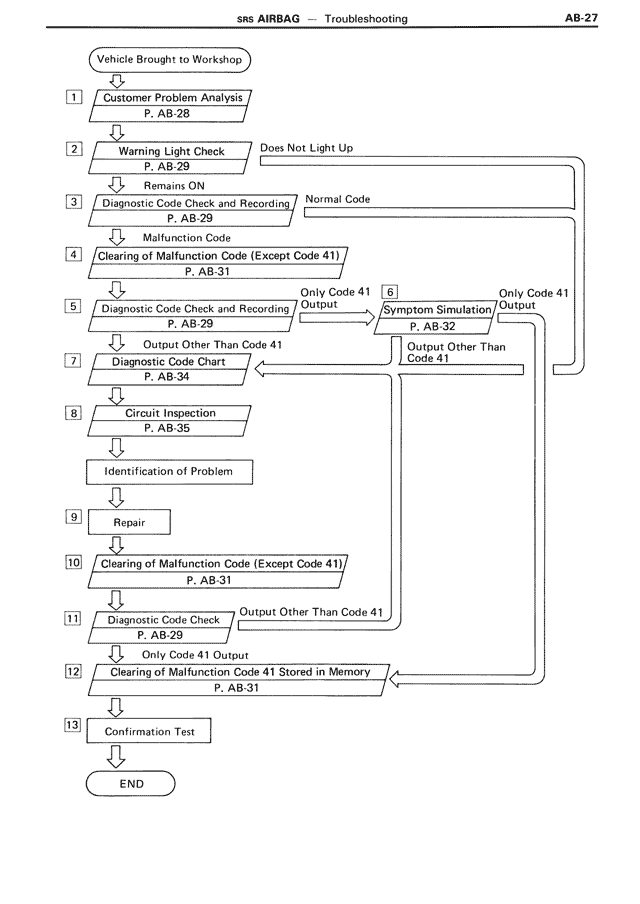

SRS AIRBAG — Troubleshooting                                                                                           AB-27

Vehicle Brought to Workshop

1    Customer Problem Analysis
     P. AB-28

2    Warning Light Check                Does Not Light Up
     P. AB-29
     Remains ON

3    Diagnostic Code Check and Recording        Normal Code
     P. AB-29
     Malfunction Code

4    Clearing of Malfunction Code (Except Code 41)
     P. AB-31

5    Diagnostic Code Check and Recording        Only Code 41    6           Only Code 41
     P. AB-29                                    Output               Symptom Simulation   Output
                                                                      P. AB-32
     Output Other Than Code 41                                       Output Other Than
7    Diagnostic Code Chart                                          Code 41
     P. AB-34

8    Circuit Inspection
     P. AB-35

     Identification of Problem

9    Repair

10   Clearing of Malfunction Code (Except Code 41)
     P. AB-31

11   Diagnostic Code Check                Output Other Than Code 41
     P. AB-29
     Only Code 41 Output

12   Clearing of Malfunction Code 41 Stored in Memory
     P. AB-31

13   Confirmation Test

     END
