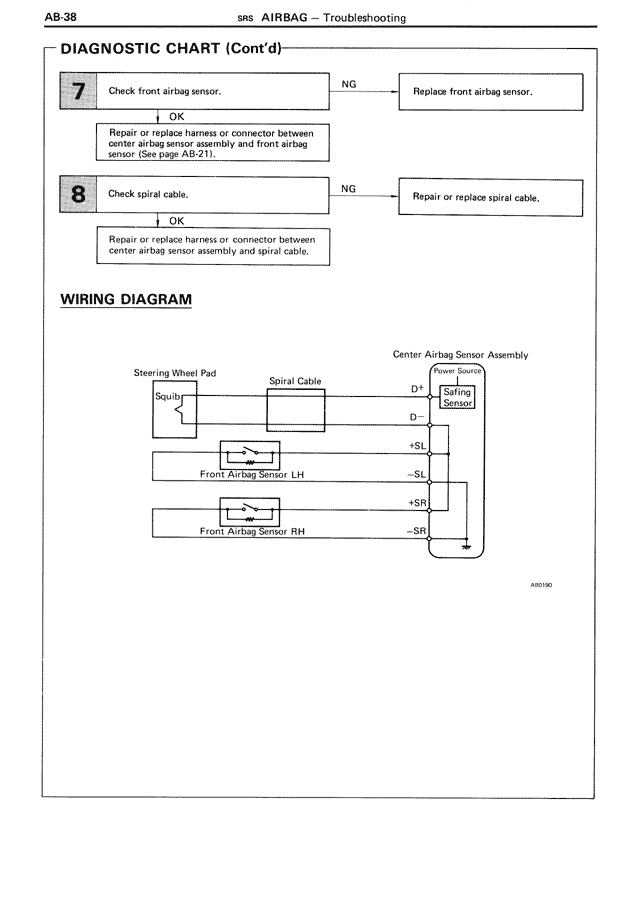

DIAGNOSTIC CHART (Cont'd)
7
Check front airbag sensor.
NG → Replace front airbag sensor.
OK ↓
Repair or replace harness or connector between
center airbag sensor assembly and front airbag
sensor. (See page AB-21).
8
Check spiral cable.
NG → Repair or replace spiral cable.
OK ↓
Repair or replace harness or connector between
center airbag sensor assembly and spiral cable.
WIRING DIAGRAM
Center Airbag Sensor Assembly
Power Source
Steering Wheel Pad
D1 → Safing Sensor
South
Spiral Cable
D→
+SL→
Front Airbag Sensor LH
-SL→
+SR→
Front Airbag Sensor RH
-SR→
AB0190
