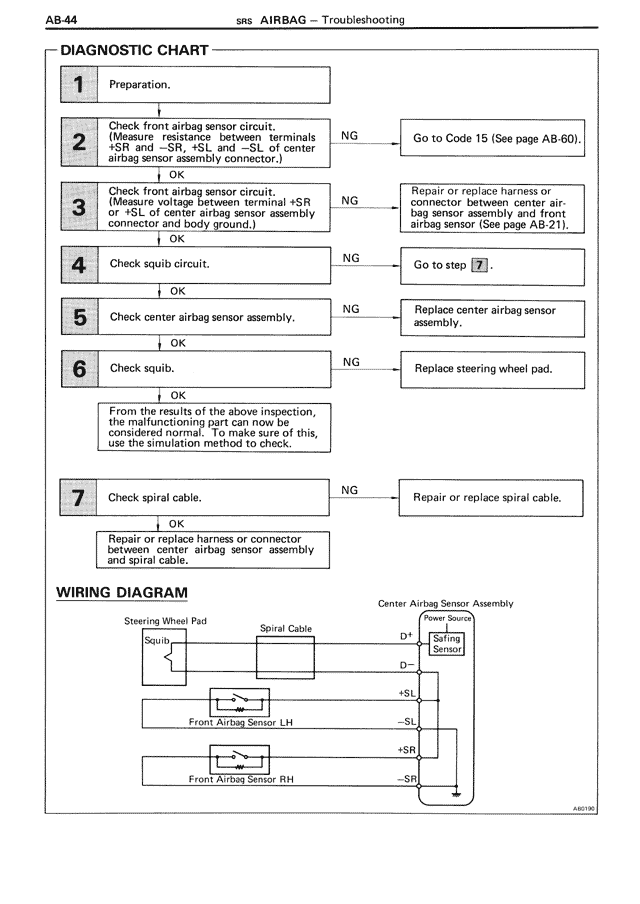

DIAGNOSTIC CHART
1
Preparation.
2
Check front airbag sensor circuit.
(Measure resistance between terminals
+SR and -SR, +SL and -SL of center
airbag sensor assembly connector.)
NG → Go to Code 15 (See page AB-60).
OK ↓
3
Check front airbag sensor circuit.
(Measure voltage between terminal +SR
or +SL of center airbag sensor assembly
connector and body ground.)
NG → Repair or replace harness or connector between center airbag sensor assembly and front airbag sensor (See page AB-21).
OK ↓
4
Check squib circuit.
NG → Go to step 7.
OK ↓
5
Check center airbag sensor assembly.
NG → Replace center airbag sensor assembly.
OK ↓
6
Check squib.
NG → Replace steering wheel pad.
OK ↓
From the results of the above inspection,
the malfunctioning part can now be
considered normal. To make sure of this,
use the simulation method to check.
7
Check spiral cable.
NG → Repair or replace spiral cable.
OK ↓
Repair or replace harness or connector
between center airbag sensor assembly
and spiral cable.
WIRING DIAGRAM
Center Airbag Sensor Assembly
Power Source
Safing
Sensor
Steering Wheel Pad
Squib
Spiral Cable
D+ D-
Front Airbag Sensor LH
+SL -SL
Front Airbag Sensor RH
+SR -SR
AB0106
