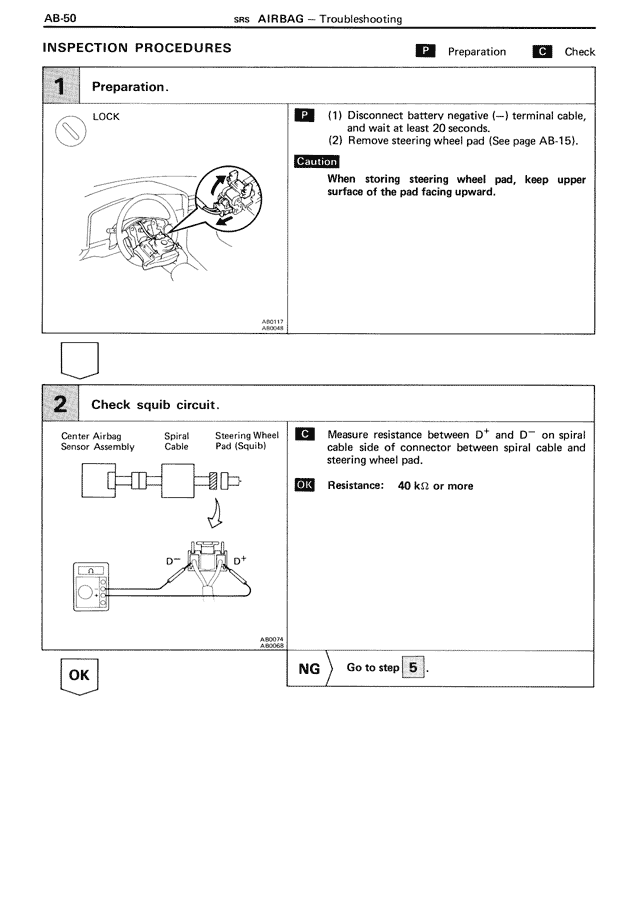

AB-50
SRS AIRBAG — Troubleshooting
INSPECTION PROCEDURES
P Preparation C Check
1 Preparation.
LOCK
P (1) Disconnect battery negative (—) terminal cable, and wait at least 20 seconds.
(2) Remove steering wheel pad (See page AB-15).
Caution
When storing steering wheel pad, keep upper surface of the pad facing upward.
2 Check squib circuit.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squib)
C Measure resistance between D+ and D— on spiral cable side of connector between spiral cable and steering wheel pad.
OK Resistance: 40 kΩ or more
OK
NG Go to step 5 .
