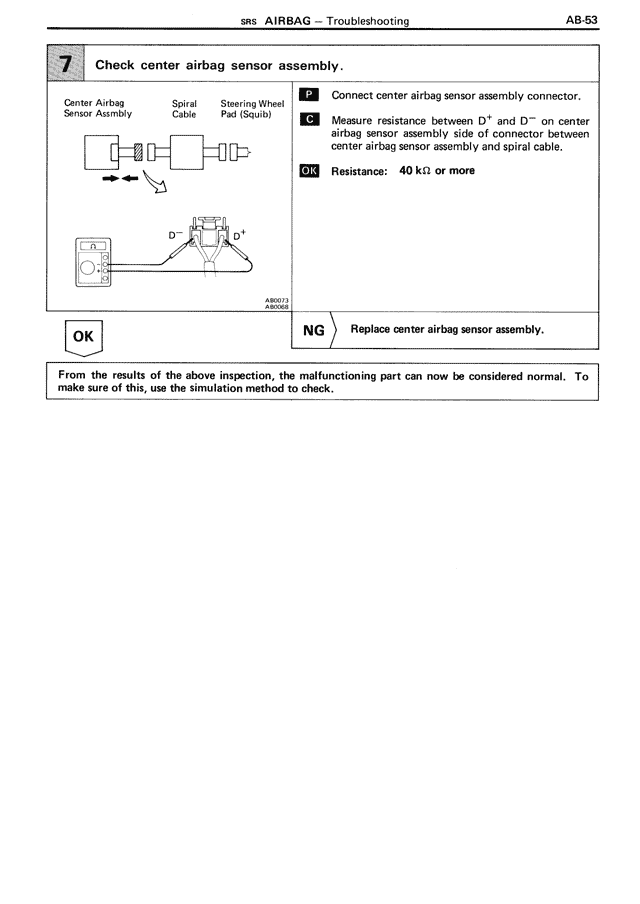

Check center airbag sensor assembly.
Center Airbag
Sensor Assembly
Spiral
Cable
Steering Wheel
Pad (Squib)
D+
D-
AB0073
AB0094
OK
NG
Connect center airbag sensor assembly connector.
Measure resistance between D+ and D- on center
airbag sensor assembly side of connector between
center airbag sensor assembly and spiral cable.
ON
Resistance: 40 kΩ or more
Replace center airbag sensor assembly.
From the results of the above inspection, the malfunctioning part can now be considered normal. To
make sure of this, use the simulation method to check.
