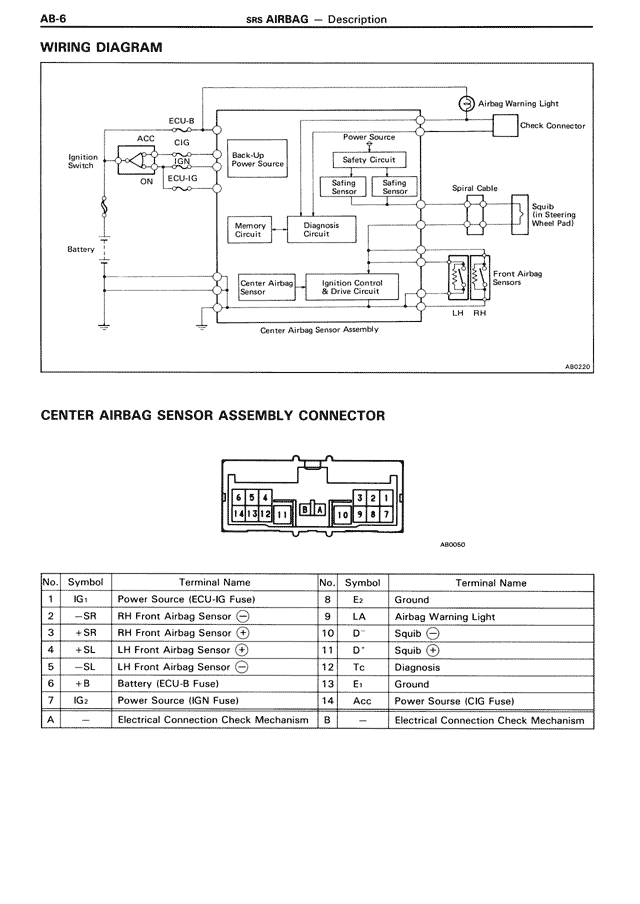

WIRING DIAGRAM
ECU-B
CIG
Ignition
Switch
ACC
ECU-IG
Back-Up
Power Source
Power Source
Safety Circuit
Safting
Sensor
Safting
Sensor
Spiral Cable
Squib
(in Steering
Wheel Pad)
Battery
Memory
Circuit
Diagnosis
Circuit
Front Airbag
Sensors
Center Airbag
Sensor
Ignition Control
& Drive Circuit
LH
RH
Center Airbag Sensor Assembly
AB0230
CENTER AIRBAG SENSOR ASSEMBLY CONNECTOR
[THIS IS DIAGRAM: Connector diagram showing pin layout with numbered terminals 1-14]
AB0060
No. Symbol Terminal Name No. Symbol Terminal Name
1 IG₁ Power Source (ECU-IG Fuse) 8 E₂ Ground
2 -SR RH Front Airbag Sensor (–) 9 LA Airbag Warning Light
3 +SR RH Front Airbag Sensor (+) 10 D Squib (–)
4 +SL LH Front Airbag Sensor (+) 11 D⁺ Squib (+)
5 -SL LH Front Airbag Sensor (–) 12 Tc Diagnosis
6 +B Battery (ECU-B Fuse) 13 E₁ Ground
7 IG₂ Power Source (IGN Fuse) 14 Acc Power Sourse (CIG Fuse)
A — Electrical Connection Check Mechanism B — Electrical Connection Check Mechanism
