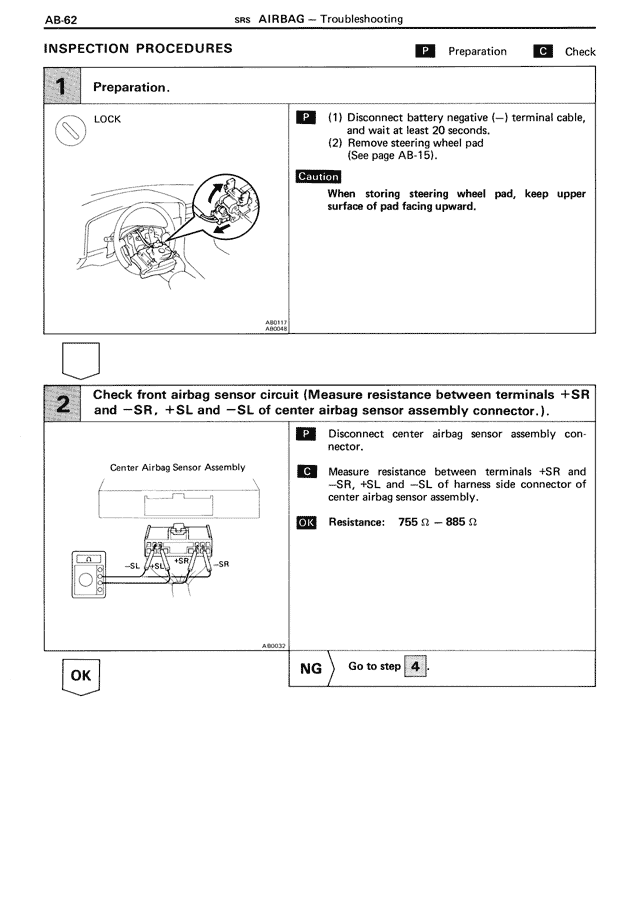

AB-62
SRS AIRBAG — Troubleshooting
INSPECTION PROCEDURES
P Preparation C Check
1 Preparation.
LOCK
P (1) Disconnect battery negative (—) terminal cable, and wait at least 20 seconds.
(2) Remove steering wheel pad (See page AB-15).
Caution
When storing steering wheel pad, keep upper surface of pad facing upward.
AB0151
AB0340
2 Check front airbag sensor circuit (Measure resistance between terminals +SR and —SR, +SL and —SL of center airbag sensor assembly connector.).
Center Airbag Sensor Assembly
+SR
—SR
+SL
—SL
P Disconnect center airbag sensor assembly connector.
C Measure resistance between terminals +SR and —SR, +SL and —SL of harness side connector of center airbag sensor assembly.
OK Resistance: 765 Ω — 885 Ω
AB0032
OK
NG Go to step 4
