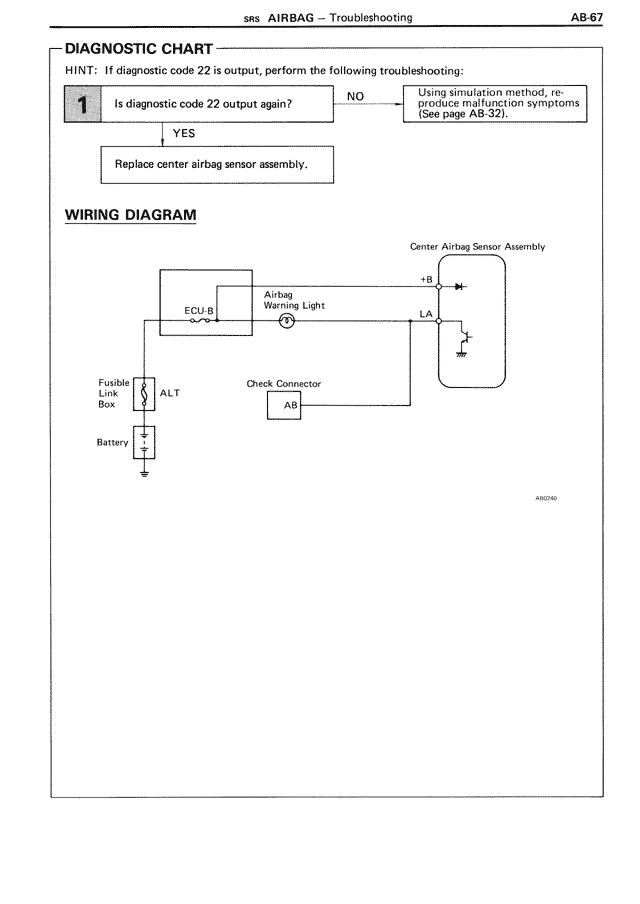

DIAGNOSTIC CHART HINT: If diagnostic code 22 is output, perform the following troubleshooting: 1 Is diagnostic code 22 output again? NO → Using simulation method, re-produce malfunction symptoms (See page AB-32). YES ↓ Replace center airbag sensor assembly. WIRING DIAGRAM Center Airbag Sensor Assembly +B LA ECU-B Airbag Warning Light 2 Fusible Link Box ALT Check Connector AB Battery AI0240
