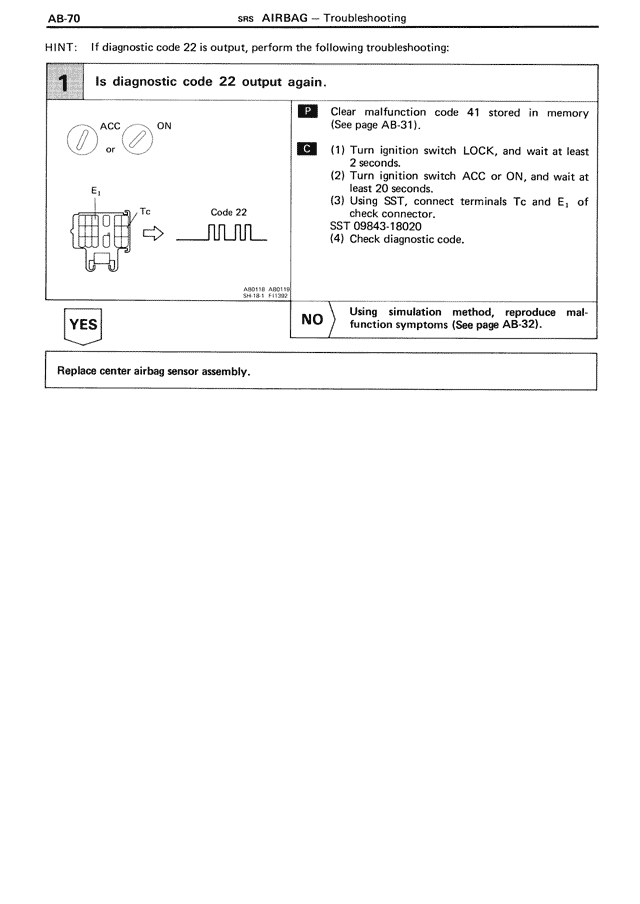

SRS AIRBAG — Troubleshooting

HINT: If diagnostic code 22 is output, perform the following troubleshooting:

1
Is diagnostic code 22 output again.

ACC    ON
or

E1
         Tc

Code 22

SST 09843-18020

D
Clear malfunction code 41 stored in memory (See page AB-31).

C
(1) Turn ignition switch LOCK, and wait at least 2 seconds.
(2) Turn ignition switch ACC or ON, and wait at least 20 seconds.
(3) Using SST, connect terminals Tc and E1 of check connector.
SST 09843-18020
(4) Check diagnostic code.

YES

NO
Using simulation method, reproduce malfunction symptoms (See page AB-32).

Replace center airbag sensor assembly.
