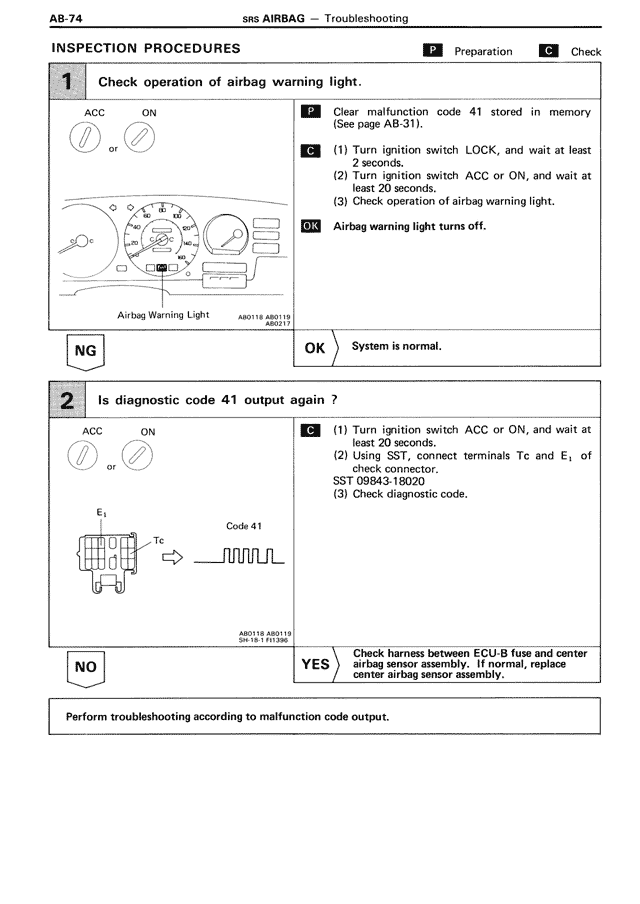

INSPECTION PROCEDURES
P Preparation C Check
1 Check operation of airbag warning light.
ACC ON
or
Airbag Warning Light
AB0118 AB0119
AB0217
P Clear malfunction code 41 stored in memory (See page AB-31).
C (1) Turn ignition switch LOCK, and wait at least 2 seconds.
(2) Turn ignition switch ACC or ON, and wait at least 20 seconds.
(3) Check operation of airbag warning light.
OK Airbag warning light turns off.
NG
OK System is normal.
2 Is diagnostic code 41 output again?
ACC ON
or
E1
Tc
Code 41
SST 09843-18020
AB0118 AB0119
AB-13 T-FIT394
C (1) Turn ignition switch ACC or ON, and wait at least 20 seconds.
(2) Using SST, connect terminals Tc and E1 of check connector.
SST 09843-18020
(3) Check diagnostic code.
NO
YES Check harness between ECU-B fuse and center airbag sensor assembly. If normal, replace center airbag sensor assembly.
Perform troubleshooting according to malfunction code output.
