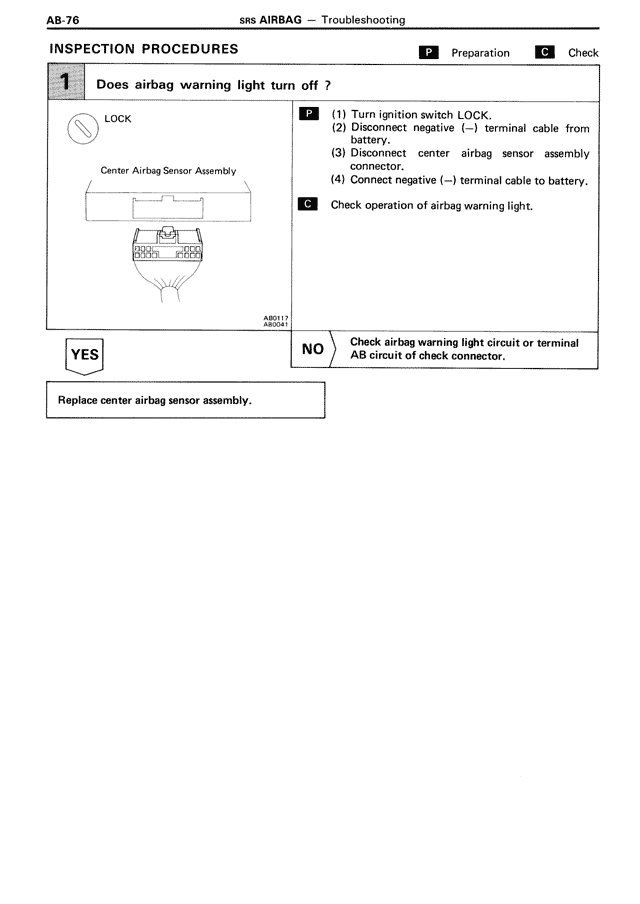

INSPECTION PROCEDURES
P Preparation C Check
1 Does airbag warning light turn off?
LOCK
Center Airbag Sensor Assembly
AB0117
AB0441
P (1) Turn ignition switch LOCK.
(2) Disconnect negative (−) terminal cable from battery.
(3) Disconnect center airbag sensor assembly connector.
(4) Connect negative (−) terminal cable to battery.
C Check operation of airbag warning light.
YES
NO Check airbag warning light circuit or terminal AB circuit of check connector.
Replace center airbag sensor assembly.
