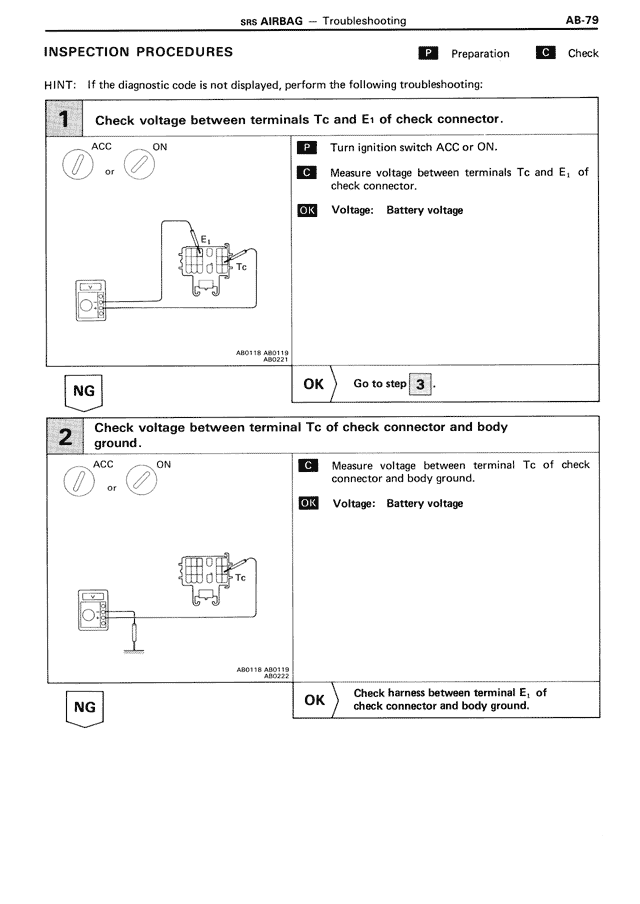

SRS AIRBAG — Troubleshooting AB-79
INSPECTION PROCEDURES P Preparation C Check
HINT: If the diagnostic code is not displayed, perform the following troubleshooting:
1 Check voltage between terminals Tc and E1 of check connector.
ACC ON
or
P Turn ignition switch ACC or ON.
C Measure voltage between terminals Tc and E1 of
check connector.
E1
Tc OK Voltage: Battery voltage
AB011B AB011B
AB0221
NG OK Go to step 3 .
2 Check voltage between terminal Tc of check connector and body
ground.
ACC ON C Measure voltage between terminal Tc of check
or connector and body ground.
OK Voltage: Battery voltage
E1
Tc
AB011B AB011B
AB0222
NG OK Check harness between terminal E1 of
check connector and body ground.
