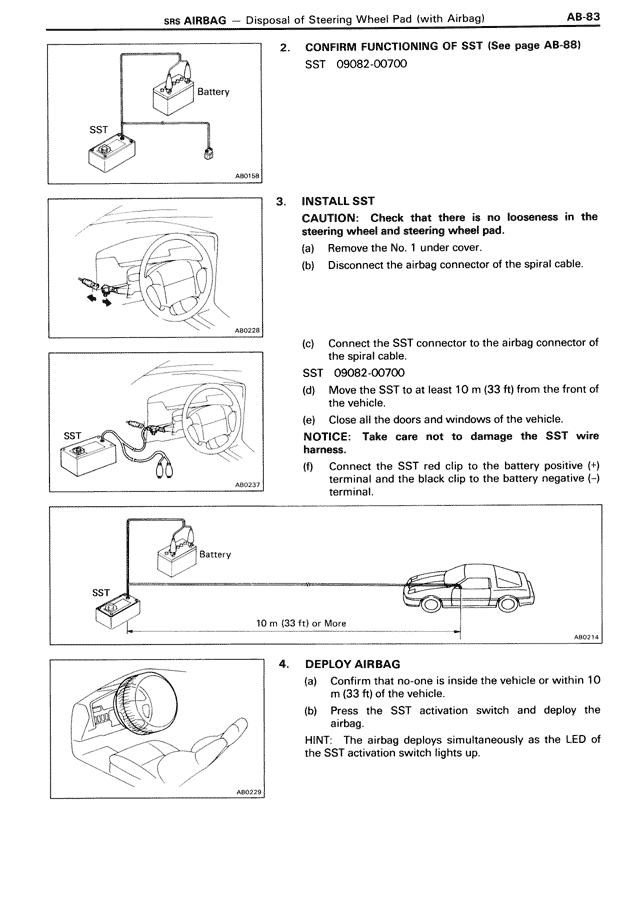

SRS AIRBAG — Disposal of Steering Wheel Pad (with Airbag) AB-83
2. CONFIRM FUNCTIONING OF SST (See page AB-88)
SST 09082-00700
3. INSTALL SST
CAUTION: Check that there is no looseness in the steering wheel and steering wheel pad.
(a) Remove the No. 1 under cover.
(b) Disconnect the airbag connector of the spiral cable.
(c) Connect the SST connector to the airbag connector of the spiral cable.
SST 09082-00700
(d) Move the SST to at least 10 m (33 ft) from the front of the vehicle.
(e) Close all the doors and windows of the vehicle.
NOTICE: Take care not to damage the SST wire harness.
Connect the SST red clip to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.
10 m (33 ft) or More
4. DEPLOY AIRBAG
(a) Confirm that no-one is inside the vehicle or within 10 m (33 ft) of the vehicle.
(b) Press the SST activation switch and deploy the airbag.
HINT: The airbag deploys simultaneously as the LED of the SST activation switch lights up.
