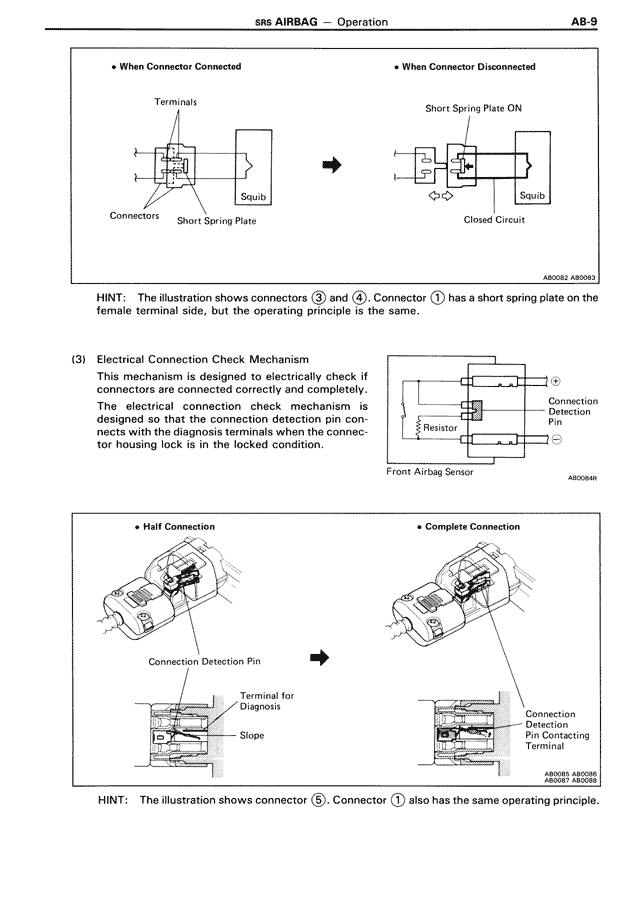

• When Connector Connected
Terminals
Connectors Short Spring Plate
Squib
• When Connector Disconnected
Short Spring Plate ON
Squib
Closed Circuit
A80082 A80093
HINT: The illustration shows connectors ③ and ④. Connector ① has a short spring plate on the female terminal side, but the operating principle is the same.
(3) Electrical Connection Check Mechanism
This mechanism is designed to electrically check if connectors are connected correctly and completely. The electrical connection check mechanism is designed so that the connection detection pin connects with female terminals when the connector housing lock is in the locked condition.
Connection Detection Pin
Resistor
Front Airbag Sensor
A80086di
• Half Connection
Connection Detection Pin
Terminal for Diagnosis
Slope
• Complete Connection
Connection Detection Pin Contacting Terminal
A80085 A80086 A80087 A80088
HINT: The illustration shows connector ⑤. Connector ① also has the same operating principle.
