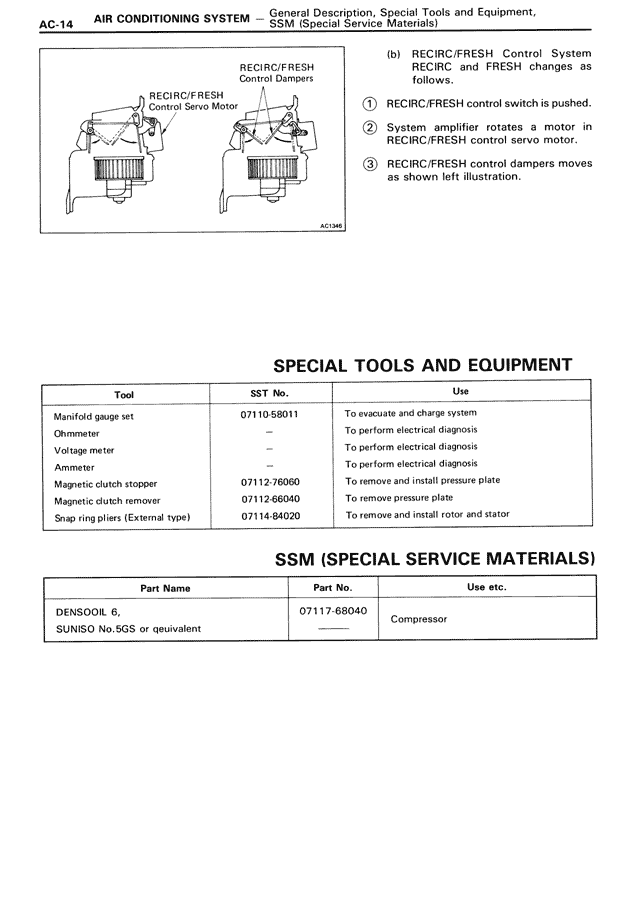

AC/Air Conditioning System, page 14

RECIRC/FRESH
Control Dampers

RECIRC/FRESH
Control Servo Motor

AC1348

(b) RECIRC/FRESH Control System
RECIRC and FRESH changes as
follows.

① RECIRC/FRESH control switch is pushed.

② System amplifier rotates a motor in
RECIRC/FRESH control servo motor.

③ RECIRC/FRESH control dampers moves
as shown left illustration.

SPECIAL TOOLS AND EQUIPMENT

Tool                                    SST No.                Use

Manifold gauge set              07110-58011        To evacuate and charge system
Ohmmeter                            —                    To perform electrical diagnosis
Voltage meter                        —                    To perform electrical diagnosis
Ammeter                              —                    To perform electrical diagnosis
Magnetic clutch stopper       07112-76060        To remove and install pressure plate
Magnetic clutch remover      07112-66040        To remove pressure plate
Snap ring pliers (External type)  07114-84020   To remove and install rotor and stator

SSM (SPECIAL SERVICE MATERIALS)

Part Name                                    Part No.              Use etc.

DENSOOIL 6,                              07117-68040         Compressor
SUNISO No.5GS or equivalent         —
