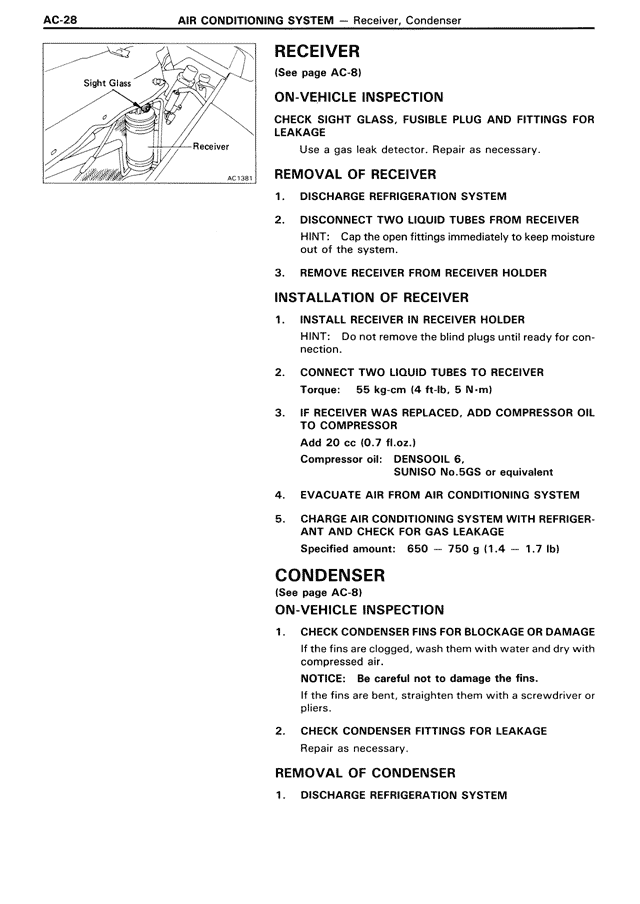

RECEIVER
(See page AC-8)
ON-VEHICLE INSPECTION
CHECK SIGHT GLASS, FUSIBLE PLUG AND FITTINGS FOR LEAKAGE
Use a gas leak detector. Repair as necessary.
REMOVAL OF RECEIVER
1. DISCHARGE REFRIGERATION SYSTEM
2. DISCONNECT TWO LIQUID TUBES FROM RECEIVER
HINT: Cap the open fittings immediately to keep moisture out of the system.
3. REMOVE RECEIVER FROM RECEIVER HOLDER
INSTALLATION OF RECEIVER
1. INSTALL RECEIVER IN RECEIVER HOLDER
HINT: Do not remove the blind plugs until ready for connection.
2. CONNECT TWO LIQUID TUBES TO RECEIVER
Torque: 55 kg·cm (4 ft·lb, 5 N·m)
3. IF RECEIVER WAS REPLACED, ADD COMPRESSOR OIL TO COMPRESSOR
Add 20 cc (0.7 fl.oz.)
Compressor oil: DENSOIL 6,
SUNISO No.5GS or equivalent
4. EVACUATE AIR FROM AIR CONDITIONING SYSTEM
5. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT AND CHECK FOR GAS LEAKAGE
Specified amount: 650 — 750 g (1.4 — 1.7 lb)
CONDENSER
(See page AC-8)
ON-VEHICLE INSPECTION
1. CHECK CONDENSER FINS FOR BLOCKAGE OR DAMAGE
If the fins are clogged, wash them with water and dry with compressed air.
NOTICE: Be careful not to damage the fins.
If the fins are bent, straighten them with a screwdriver or pliers.
2. CHECK CONDENSER FITTINGS FOR LEAKAGE
Repair as necessary.
REMOVAL OF CONDENSER
1. DISCHARGE REFRIGERATION SYSTEM
