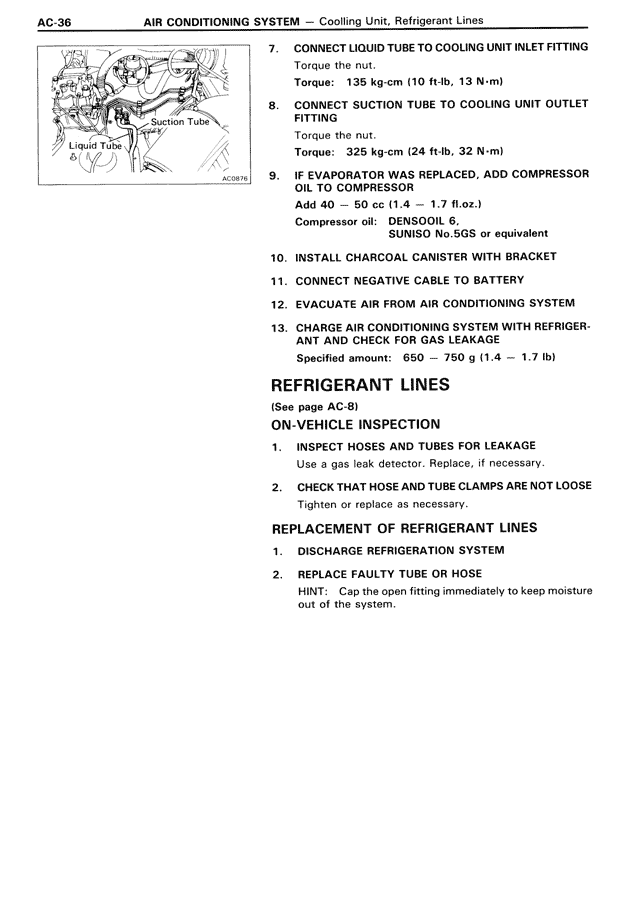

AC-36
AIR CONDITIONING SYSTEM — Cooling Unit, Refrigerant Lines
[DIAGRAM showing Liquid Tube and Suction Tube labeled as AC0876]
7. CONNECT LIQUID TUBE TO COOLING UNIT INLET FITTING
Torque the nut.
Torque: 135 kg·cm {10 ft·lb, 13 N·m}
8. CONNECT SUCTION TUBE TO COOLING UNIT OUTLET FITTING
Torque the nut.
Torque: 325 kg·cm {24 ft·lb, 32 N·m}
9. IF EVAPORATOR WAS REPLACED, ADD COMPRESSOR OIL TO COMPRESSOR
Add 40 — 50 cc {1.4 — 1.7 fl.oz.}
Compressor oil: DENSOIL 6,
SUNISO No.5GS or equivalent
10. INSTALL CHARCOAL CANISTER WITH BRACKET
11. CONNECT NEGATIVE CABLE TO BATTERY
12. EVACUATE AIR FROM AIR CONDITIONING SYSTEM
13. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT AND CHECK FOR GAS LEAKAGE
Specified amount: 650 — 750 g {1.4 — 1.7 lb}
REFRIGERANT LINES
(See page AC-8)
ON-VEHICLE INSPECTION
1. INSPECT HOSES AND TUBES FOR LEAKAGE
Use a gas leak detector. Replace, if necessary.
2. CHECK THAT HOSE AND TUBE CLAMPS ARE NOT LOOSE
Tighten or replace as necessary.
REPLACEMENT OF REFRIGERANT LINES
1. DISCHARGE REFRIGERATION SYSTEM
2. REPLACE FAULTY TUBE OR HOSE
HINT: Cap the open fitting immediately to keep moisture out of the system.
