← p.004
AC
/
Air Conditioning System
5 / 46
p.006 →
−
100%
+

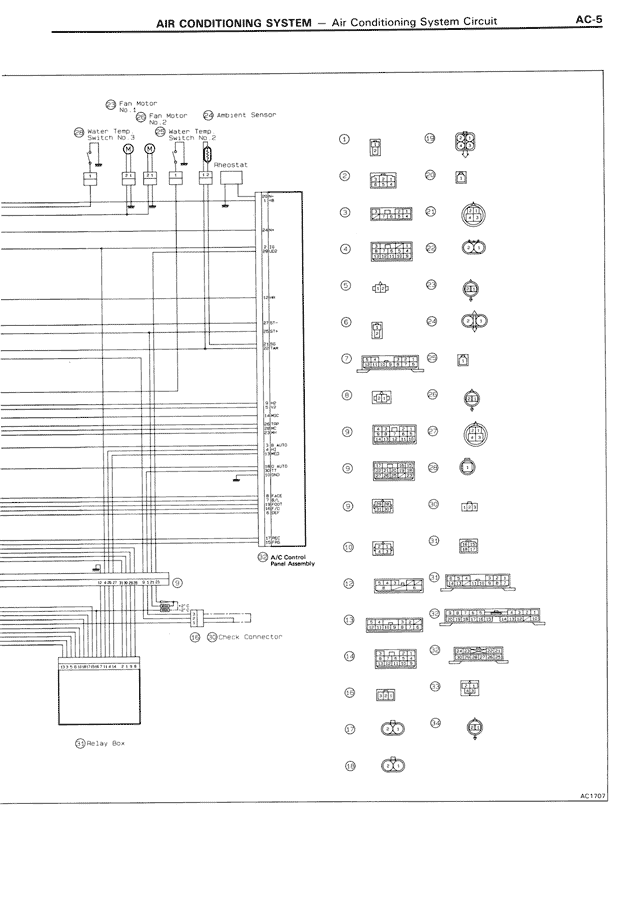

AIR CONDITIONING SYSTEM — Air Conditioning System Circuit AC-5 2 Fan Motor 3 Fan Motor 4 Ambient Sensor 5 Water Temp. Sensor 3 A/C Control Panel Assembly 1 O Check Connector 2 Relay Box AC1002
