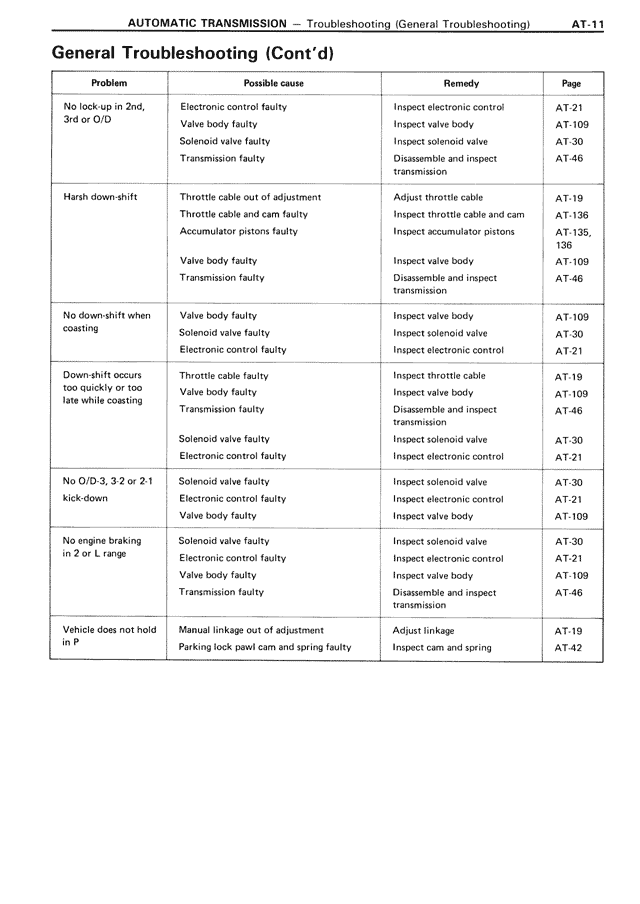

General Troubleshooting (Cont'd)
Problem | Possible cause | Remedy | Page
No lock-up in 2nd, 3rd or O/D | Electronic control faulty | Inspect electronic control | AT-21
| Valve body faulty | Inspect valve body | AT-109
| Solenoid valve faulty | Inspect solenoid valve | AT-30
| Transmission faulty | Disassemble and inspect transmission | AT-46
Harsh down-shift | Throttle cable out of adjustment | Adjust throttle cable | AT-19
| Throttle cable and cam faulty | Inspect throttle cable and cam | AT-136
| Accumulator pistons faulty | Inspect accumulator pistons | AT-135, 136
| Valve body faulty | Inspect valve body | AT-109
| Transmission faulty | Disassemble and inspect transmission | AT-46
No down-shift when coasting | Valve body faulty | Inspect valve body | AT-109
| Solenoid valve faulty | Inspect solenoid valve | AT-30
| Electronic control faulty | Inspect electronic control | AT-21
Down-shift occurs too quickly or too late while coasting | Throttle cable faulty | Inspect throttle cable | AT-19
| Valve body faulty | Inspect valve body | AT-109
| Transmission faulty | Disassemble and inspect transmission | AT-46
| Solenoid valve faulty | Inspect solenoid valve | AT-30
| Electronic control faulty | Inspect electronic control | AT-21
No O/D-3, 3-2 or 2-1 kick-down | Solenoid valve faulty | Inspect solenoid valve | AT-30
| Electronic control faulty | Inspect electronic control | AT-21
| Valve body faulty | Inspect valve body | AT-109
No engine braking in 2 or L range | Solenoid valve faulty | Inspect solenoid valve | AT-30
| Electronic control faulty | Inspect electronic control | AT-21
| Valve body faulty | Inspect valve body | AT-109
| Transmission faulty | Disassemble and inspect transmission | AT-46
Vehicle does not hold in P | Manual linkage out of adjustment | Adjust linkage | AT-19
| Parking lock pawl cam and spring faulty | Inspect cam and spring | AT-42
