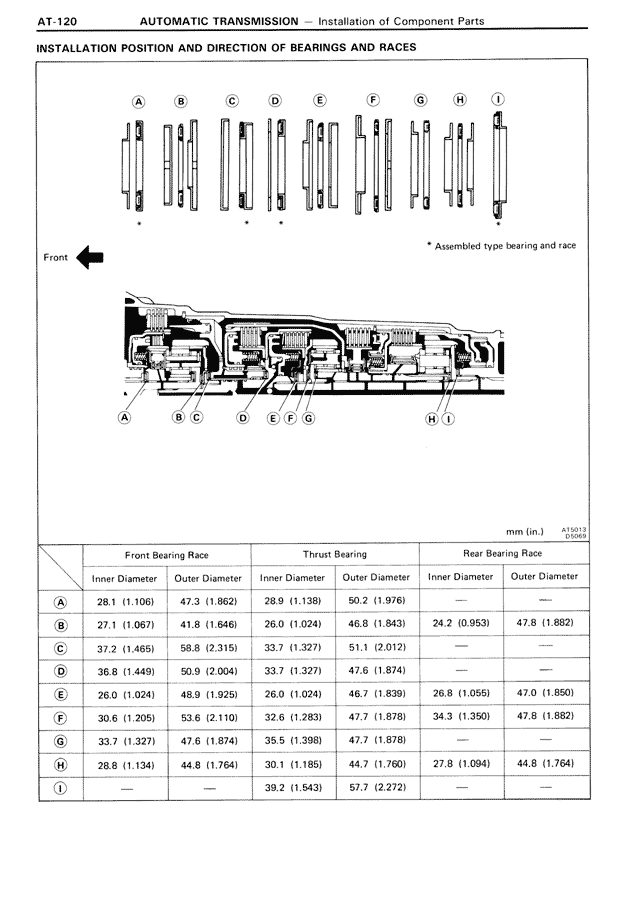

INSTALLATION POSITION AND DIRECTION OF BEARINGS AND RACES [Diagram showing bearing positions A through I with arrows indicating front direction] * Assembled type bearing and race [Cross-sectional diagram showing bearing installation positions labeled A through I] mm (in.) D-0049 [THIS IS TABLE: Bearing and race dimensions table with following columns: Position (A-I), Front Bearing Race (Inner/Outer Diameter), Thrust Bearing (Inner/Outer Diameter), Rear Bearing Race (Inner/Outer Diameter)] A: 28.1 (1.106) | 47.3 (1.862) | 28.9 (1.138) | 50.2 (1.976) | — | — B: 27.1 (1.067) | 41.8 (1.646) | 26.0 (1.024) | 46.8 (1.843) | 24.2 (0.953) | 47.8 (1.882) C: 37.2 (1.465) | 58.8 (2.315) | 33.7 (1.327) | 51.1 (2.012) | — | — D: 36.8 (1.449) | 50.9 (2.004) | 33.7 (1.327) | 47.6 (1.874) | — | — E: 26.0 (1.024) | 48.9 (1.925) | 26.0 (1.024) | 46.7 (1.839) | 26.8 (1.055) | 47.0 (1.850) F: 30.6 (1.205) | 53.6 (2.110) | 32.6 (1.283) | 47.7 (1.878) | 34.3 (1.350) | 47.8 (1.882) G: 33.7 (1.327) | 47.6 (1.874) | 35.5 (1.398) | 47.7 (1.878) | — | — H: 28.8 (1.134) | 44.8 (1.764) | 30.1 (1.185) | 44.7 (1.760) | 27.8 (1.094) | 44.8 (1.764) I: — | — | 39.2 (1.543) | 57.7 (2.272) | — | —
