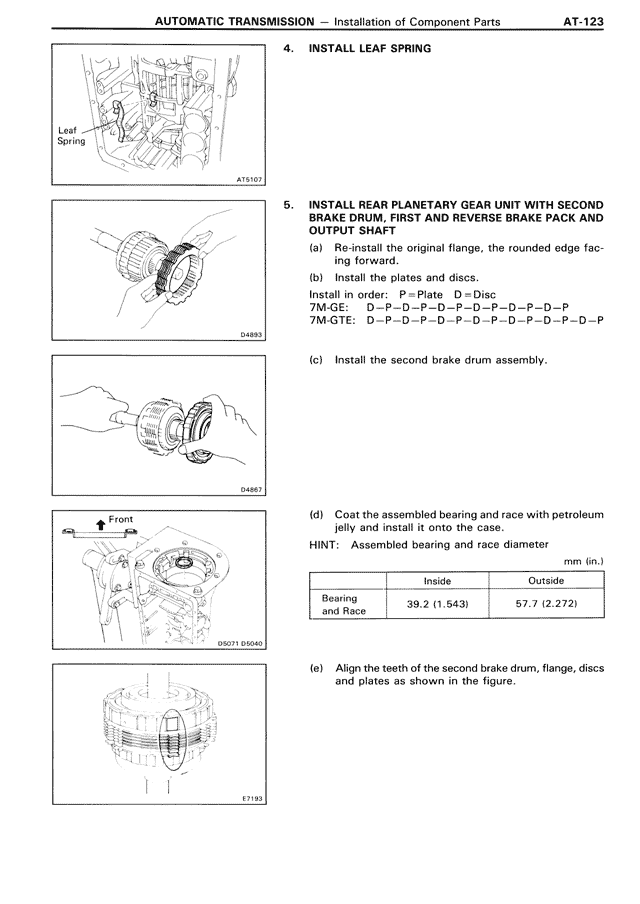

4. INSTALL LEAF SPRING
5. INSTALL REAR PLANETARY GEAR UNIT WITH SECOND BRAKE DRUM, FIRST AND REVERSE BRAKE PACK AND OUTPUT SHAFT
(a) Re-install the original flange, the rounded edge facing forward.
(b) Install the plates and discs.
Install in order: P=Plate D=Disc
7M-GE: D-P-D-P-D-P-D-P-D-P-D-P
7M-GTE: D-P-D-P-D-P-D-P-D-P-D-P-D-P
(c) Install the second brake drum assembly.
(d) Coat the assembled bearing and race with petroleum jelly and install it onto the case.
HINT: Assembled bearing and race diameter
mm (in.)
[Table]
Bearing and Race | Inside: 39.2 (1.543) | Outside: 57.7 (2.272)
(e) Align the teeth of the second brake drum, flange, discs and plates as shown in the figure.
