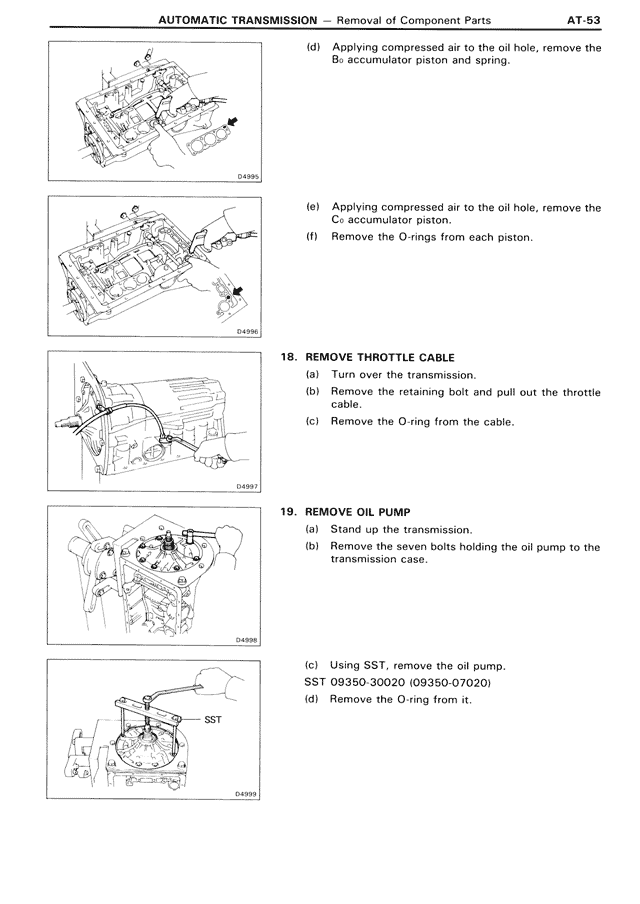

AUTOMATIC TRANSMISSION — Removal of Component Parts AT-53
(d) Applying compressed air to the oil hole, remove the
B₂ accumulator piston and spring.
D4993
(e) Applying compressed air to the oil hole, remove the
C₀ accumulator piston.
(f) Remove the O rings from each piston.
D4396
18. REMOVE THROTTLE CABLE
(a) Turn over the transmission.
(b) Remove the retaining bolt and pull out the throttle
cable.
(c) Remove the O-ring from the cable.
D4993
19. REMOVE OIL PUMP
(a) Stand up the transmission.
(b) Remove the seven bolts holding the oil pump to the
transmission case.
D4998
(c) Using SST, remove the oil pump.
SST 09350-30020 (09350-07020)
(d) Remove the O-ring from it.
D4998
