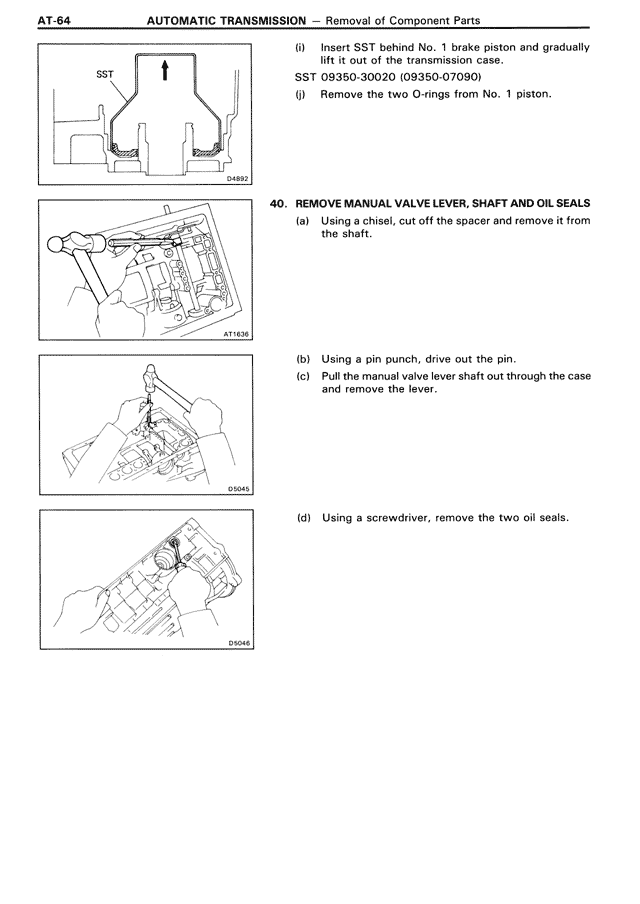

AT-64 AUTOMATIC TRANSMISSION — Removal of Component Parts
SST
(i) Insert SST behind No. 1 brake piston and gradually lift it out of the transmission case.
SST 09350-30020 (09350-07090)
(j) Remove the two O-rings from No. 1 piston.
40. REMOVE MANUAL VALVE LEVER, SHAFT AND OIL SEALS
(a) Using a chisel, cut off the spacer and remove it from the shaft.
(b) Using a pin punch, drive out the pin.
(c) Pull the manual valve lever shaft out through the case and remove the lever.
(d) Using a screwdriver, remove the two oil seals.
