← p.071
AT
/
Automatic Transmission
72 / 144
p.073 →
−
100%
+

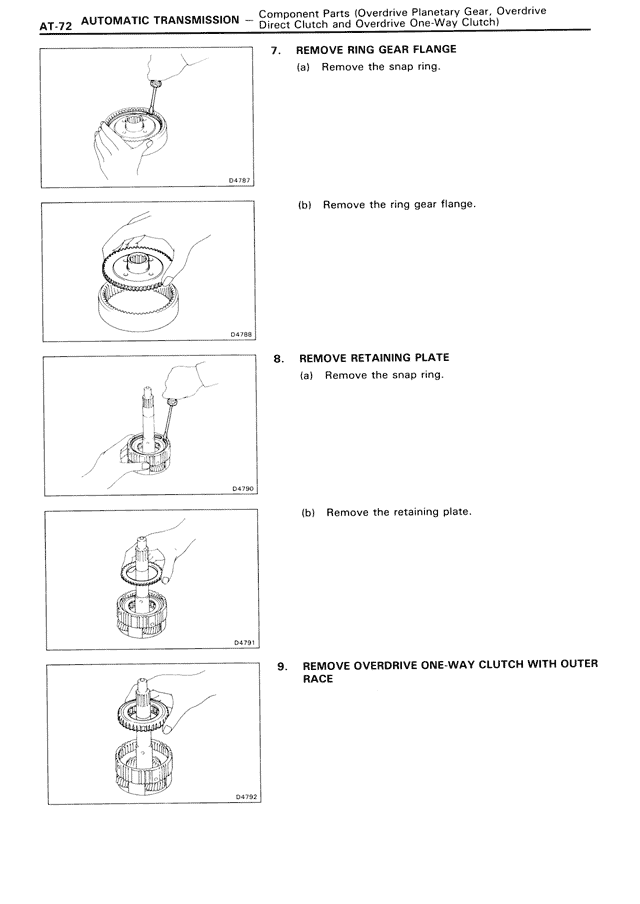

7. REMOVE RING GEAR FLANGE (a) Remove the snap ring. (b) Remove the ring gear flange. 8. REMOVE RETAINING PLATE (a) Remove the snap ring. (b) Remove the retaining plate. 9. REMOVE OVERDRIVE ONE-WAY CLUTCH WITH OUTER RACE
