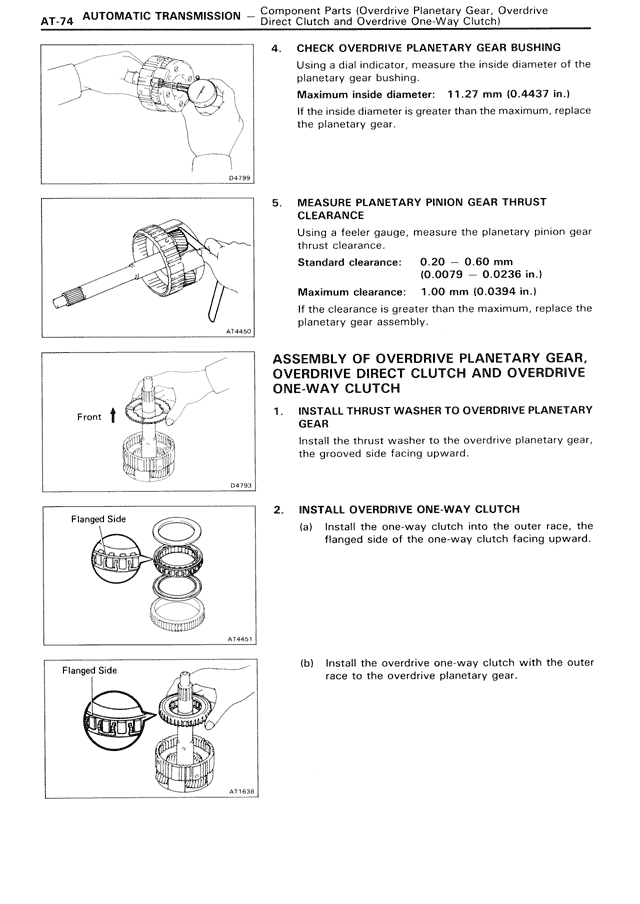

AT-74 AUTOMATIC TRANSMISSION — Component Parts (Overdrive Planetary Gear, Overdrive Direct Clutch and Overdrive One-Way Clutch)
4. CHECK OVERDRIVE PLANETARY GEAR BUSHING
Using a dial indicator, measure the inside diameter of the planetary gear bushing.
Maximum inside diameter: 11.27 mm (0.4437 in.)
If the inside diameter is greater than the maximum, replace the planetary gear.
5. MEASURE PLANETARY PINION GEAR THRUST CLEARANCE
Using a feeler gauge, measure the planetary pinion gear thrust clearance.
Standard clearance: 0.20 — 0.60 mm
(0.0079 — 0.0236 in.)
Maximum clearance: 1.00 mm (0.0394 in.)
If the clearance is greater than the maximum, replace the planetary gear assembly.
ASSEMBLY OF OVERDRIVE PLANETARY GEAR, OVERDRIVE DIRECT CLUTCH AND OVERDRIVE ONE-WAY CLUTCH
1. INSTALL THRUST WASHER TO OVERDRIVE PLANETARY GEAR
Install the thrust washer to the overdrive planetary gear, the grooved side facing upward.
2. INSTALL OVERDRIVE ONE-WAY CLUTCH
(a) Install the one-way clutch into the outer race, the flanged side of the one-way clutch facing upward.
(b) Install the overdrive one-way clutch with the outer race to the overdrive planetary gear.
