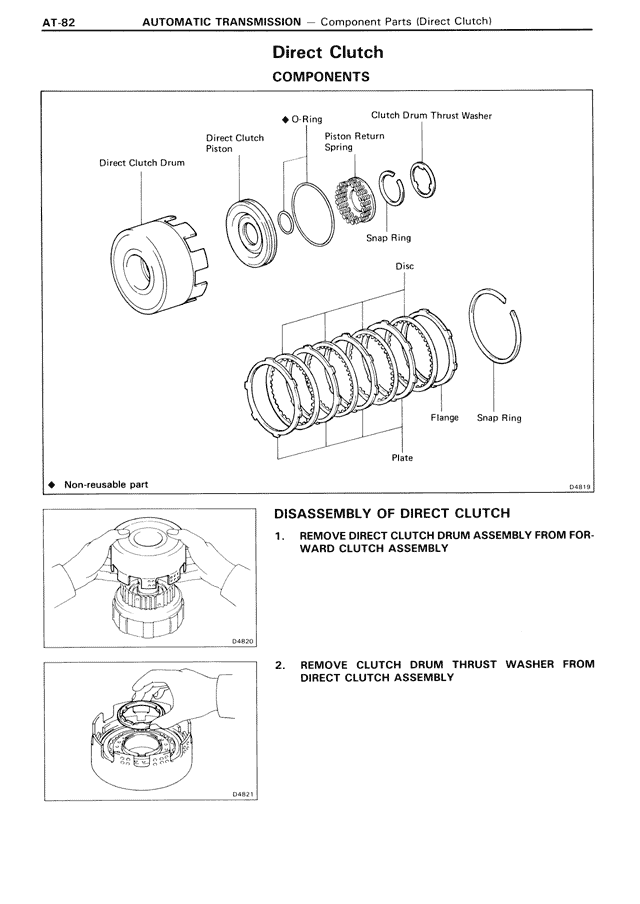

AT-82 AUTOMATIC TRANSMISSION — Component Parts (Direct Clutch) Direct Clutch COMPONENTS Direct Clutch Drum Direct Clutch Piston O-Ring Clutch Drum Thrust Washer Piston Return Spring Snap Ring Disc Snap Ring Flange Plate ♦ Non-reusable part DISASSEMBLY OF DIRECT CLUTCH 1. REMOVE DIRECT CLUTCH DRUM ASSEMBLY FROM FORWARD CLUTCH ASSEMBLY 2. REMOVE CLUTCH DRUM THRUST WASHER FROM DIRECT CLUTCH ASSEMBLY
