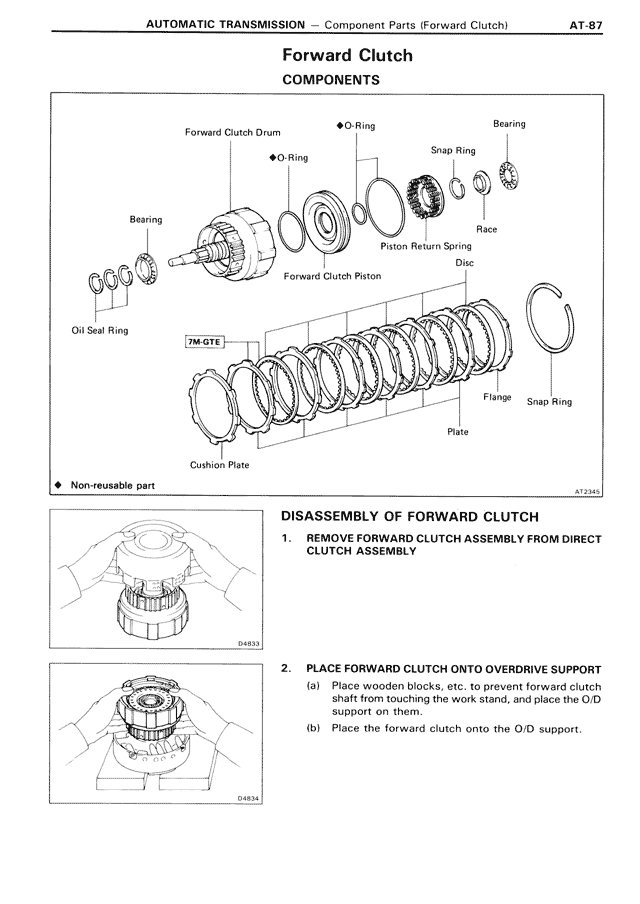

Forward Clutch
COMPONENTS
Forward Clutch Drum
♦O-Ring
Bearing
♦O-Ring
Snap Ring
O-Ring
Bearing
Race
Piston Return Spring
Disc
Forward Clutch Piston
Bearing
Oil Seal Ring
7M-GTE
Flange
Snap Ring
Plate
Cushion Plate
♦ Non-reusable part
AT2345
DISASSEMBLY OF FORWARD CLUTCH
1. REMOVE FORWARD CLUTCH ASSEMBLY FROM DIRECT CLUTCH ASSEMBLY
D4833
2. PLACE FORWARD CLUTCH ONTO OVERDRIVE SUPPORT
(a) Place wooden blocks, etc. to prevent forward clutch shaft from touching the work stand, and place the O/D support on them.
(b) Place the forward clutch onto the O/D support.
D4834
