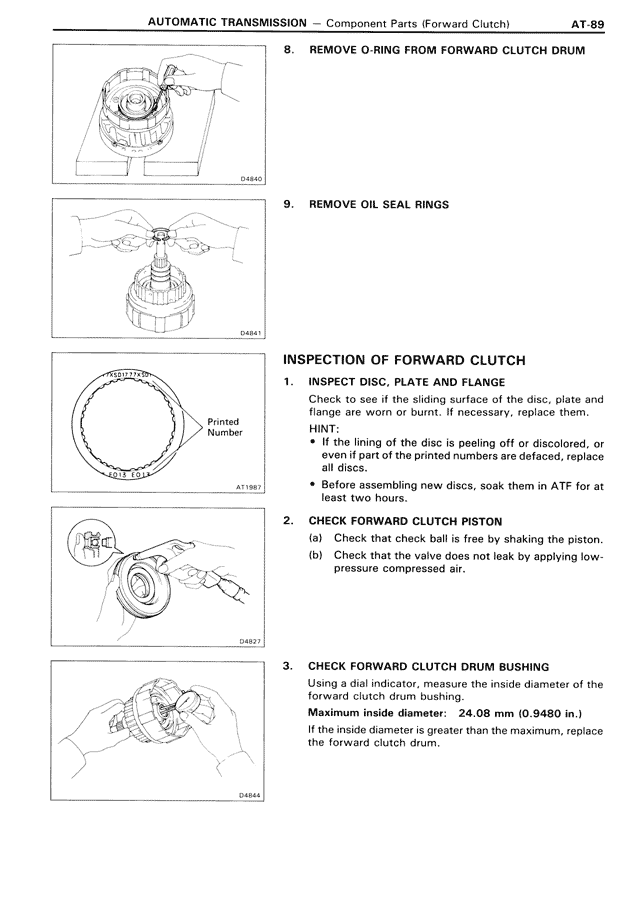

8. REMOVE O-RING FROM FORWARD CLUTCH DRUM 9. REMOVE OIL SEAL RINGS INSPECTION OF FORWARD CLUTCH 1. INSPECT DISC, PLATE AND FLANGE Check to see if the sliding surface of the disc, plate and flange are worn or burnt. If necessary, replace them. HINT: • If the lining of the disc is peeling off or discolored, or even if part of the printed numbers are defaced, replace all discs. • Before assembling new discs, soak them in ATF for at least two hours. 2. CHECK FORWARD CLUTCH PISTON (a) Check that check ball is free by shaking the piston. (b) Check that the valve does not leak by applying low-pressure compressed air. 3. CHECK FORWARD CLUTCH DRUM BUSHING Using a dial indicator, measure the inside diameter of the forward clutch drum bushing. Maximum inside diameter: 24.08 mm (0.9480 in.) If the inside diameter is greater than the maximum, replace the forward clutch drum.
