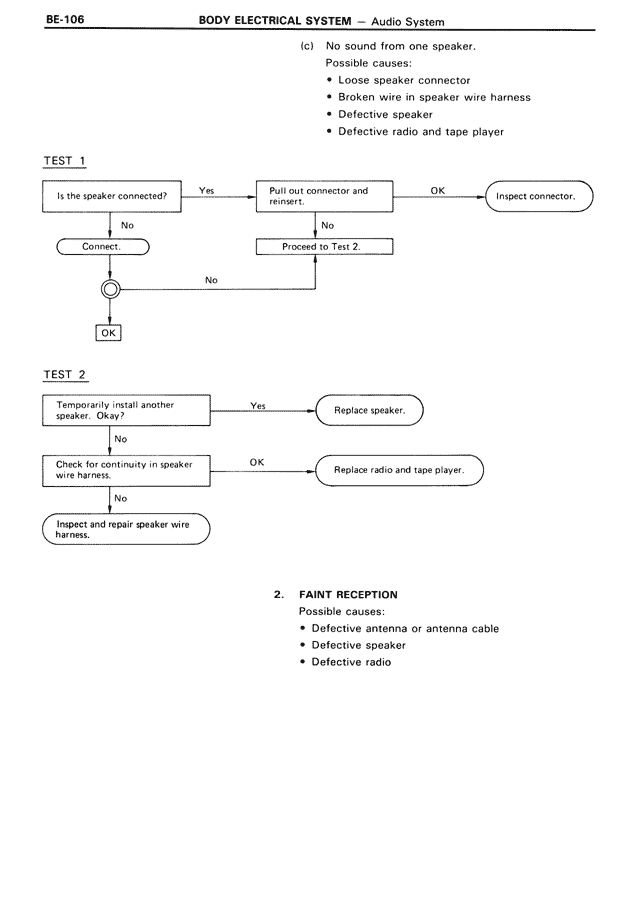

BE-106
BODY ELECTRICAL SYSTEM — Audio System
(c) No sound from one speaker.
Possible causes:
• Loose speaker connector
• Broken wire in speaker wire harness
• Defective speaker
• Defective radio and tape player
TEST 1
Is the speaker connected? → Yes → Pull out connector and reinsert. → OK → Inspect connector.
↓ No
Connect.
↓
⊙ → No ←┘
↓ OK
TEST 2
Temporarily install another speaker. Okay? → Yes → Replace speaker.
↓ No
Check for continuity in speaker wire harness. → OK → Replace radio and tape player.
↓ No
Inspect and repair speaker wire harness.
2. FAINT RECEPTION
Possible causes:
• Defective antenna or antenna cable
• Defective speaker
• Defective radio
