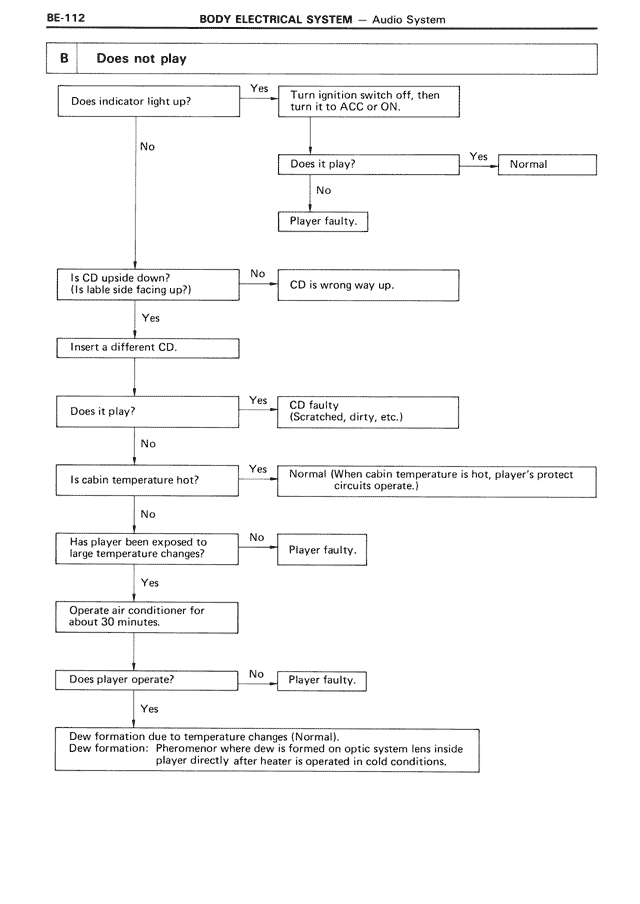

Does not play — MK3 Supra Body Electrical System, page 112
100%
BE-112 BODY ELECTRICAL SYSTEM — Audio System B Does not play Does indicator light up? Yes Turn ignition switch off, then turn it to ACC or ON. No Does it play? Yes Normal No Player faulty. Is CD upside down? (Is label side facing up?) No CD is wrong way up. Yes Insert a different CD. Does it play? Yes CD faulty (Scratched, dirty, etc.) No Is cabin temperature hot? Yes Normal (When cabin temperature is hot, player's protect circuits operate.) No Has player been exposed to large temperature changes? No Player faulty. Yes Operate air conditioner for about 30 minutes. Does player operate? No Player faulty. Yes Dew formation due to temperature changes (Normal). Dew formation: Phenomenon where dew is formed on optic system lens inside player directly after heater is operated in cold conditions.
