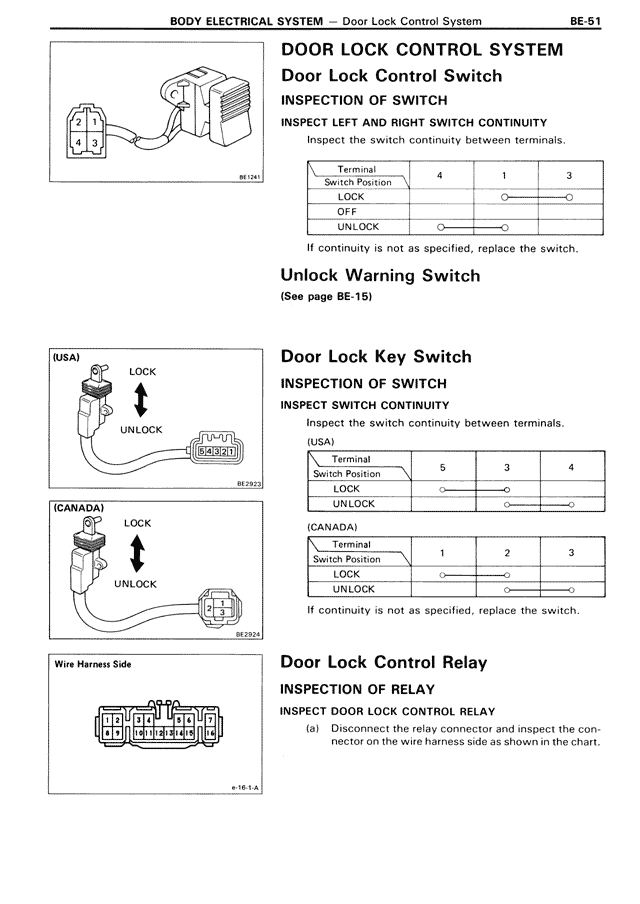

DOOR LOCK CONTROL SYSTEM
Door Lock Control Switch
INSPECTION OF SWITCH
INSPECT LEFT AND RIGHT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
Terminal
Switch Position 4 1 3
LOCK ○————○
OFF
UNLOCK ○————○
If continuity is not as specified, replace the switch.
Unlock Warning Switch
(See page BE-15)
Door Lock Key Switch
INSPECTION OF SWITCH
INSPECT SWITCH CONTINUITY
Inspect the switch continuity between terminals.
(USA)
Terminal
Switch Position 5 3 4
LOCK ○————○
UNLOCK ○————○
(CANADA)
Terminal
Switch Position 1 2 3
LOCK ○————○
UNLOCK ○————○
If continuity is not as specified, replace the switch.
Door Lock Control Relay
INSPECTION OF RELAY
INSPECT DOOR LOCK CONTROL RELAY
(a) Disconnect the relay connector and inspect the connector on the wire harness side as shown in the chart.
