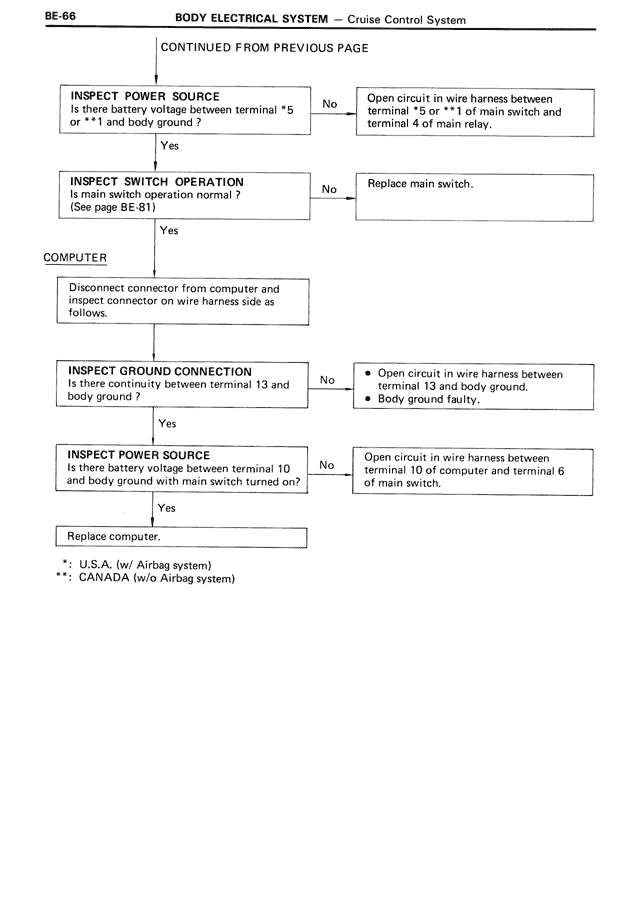

CONTINUED FROM PREVIOUS PAGE
INSPECT POWER SOURCE
Is there battery voltage between terminal *5 or **1 and body ground?
No → Open circuit in wire harness between terminal *5 or **1 of main switch and terminal 4 of main relay.
Yes ↓
INSPECT SWITCH OPERATION
Is main switch operation normal?
(See page BE-81)
No → Replace main switch.
Yes ↓
COMPUTER
Disconnect connector from computer and inspect connector on wire harness side as follows.
↓
INSPECT GROUND CONNECTION
Is there continuity between terminal 13 and body ground?
No → • Open circuit in wire harness between terminal 13 and body ground.
• Body ground faulty.
Yes ↓
INSPECT POWER SOURCE
Is there battery voltage between terminal 10 and body ground with main switch turned on?
No → Open circuit in wire harness between terminal 10 of computer and terminal 6 of main switch.
Yes ↓
Replace computer.
*: U.S.A. (w/ Airbag system)
**: CANADA (w/o Airbag system)
