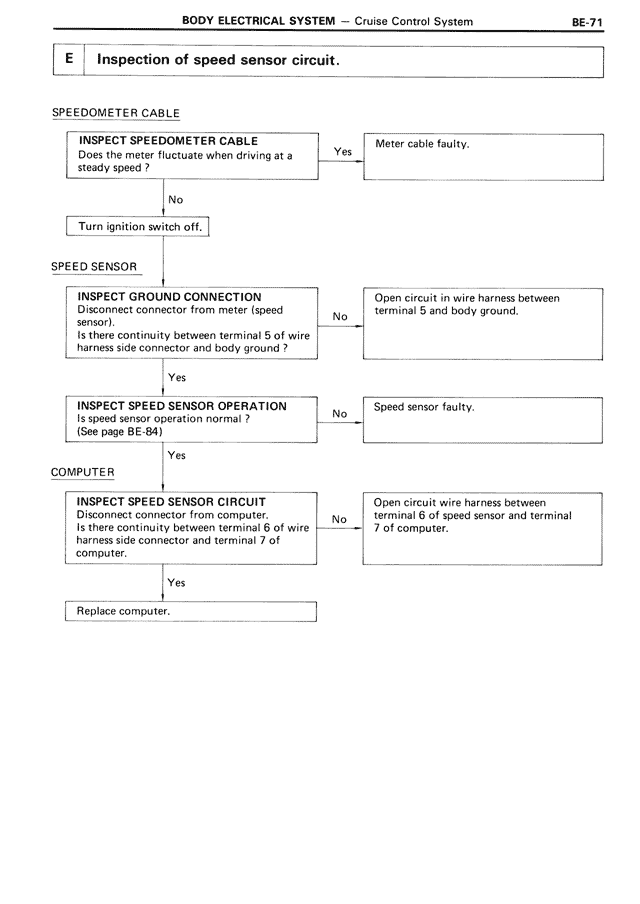

E Inspection of speed sensor circuit.
SPEEDOMETER CABLE
INSPECT SPEEDOMETER CABLE
Does the meter fluctuate when driving at a
steady speed?
Yes → Meter cable faulty.
No ↓
Turn ignition switch off.
SPEED SENSOR
INSPECT GROUND CONNECTION
Disconnect connector from meter (speed
sensor).
Is there continuity between terminal 5 of wire
harness side connector and body ground?
No → Open circuit in wire harness between
terminal 5 and body ground.
Yes ↓
INSPECT SPEED SENSOR OPERATION
Is speed sensor operation normal?
(See page BE-84)
No → Speed sensor faulty.
Yes ↓
COMPUTER
INSPECT SPEED SENSOR CIRCUIT
Disconnect connector from computer.
Is there continuity between terminal 6 of wire
harness side connector and terminal 7 of
computer.
No → Open circuit in wire harness between
terminal 6 of speed sensor and terminal
7 of computer.
Yes ↓
Replace computer.
