BE-86

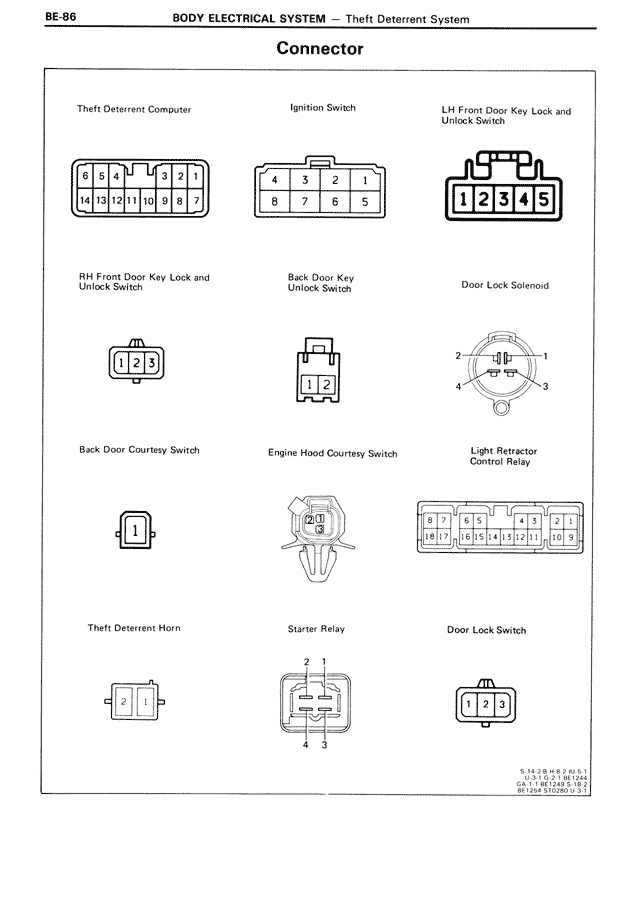

BODY ELECTRICAL SYSTEM — Theft Deterrent System
Connector
Theft Deterrent Computer
6 5 4 3 2 1
14 13 12 11 10 9 8 7
Ignition Switch
4 5 2 1
8 7 6 5
LH Front Door Key Lock and Unlock Switch
1 2 3 4 5
RH Front Door Key Lock and Unlock Switch
1 2 3
Back Door Key Unlock Switch
1 2
Door Lock Solenoid
2 1
4 3
Back Door Courtesy Switch
1
Engine Hood Courtesy Switch
2 3
1
Light Retractor Control Relay
9 8
18 17 16 15 14 13 12 11 10 9
Theft Deterrent Horn
2 1
Starter Relay
2 1
4 3
Door Lock Switch
1 2 3
G-14-2B M-F-2 MH-S1
18-14-2B M-F-4 MF-S2 S-1
18-14-2B M-F-4 TM-S3 S-1
BD USA G10294-V3-1
