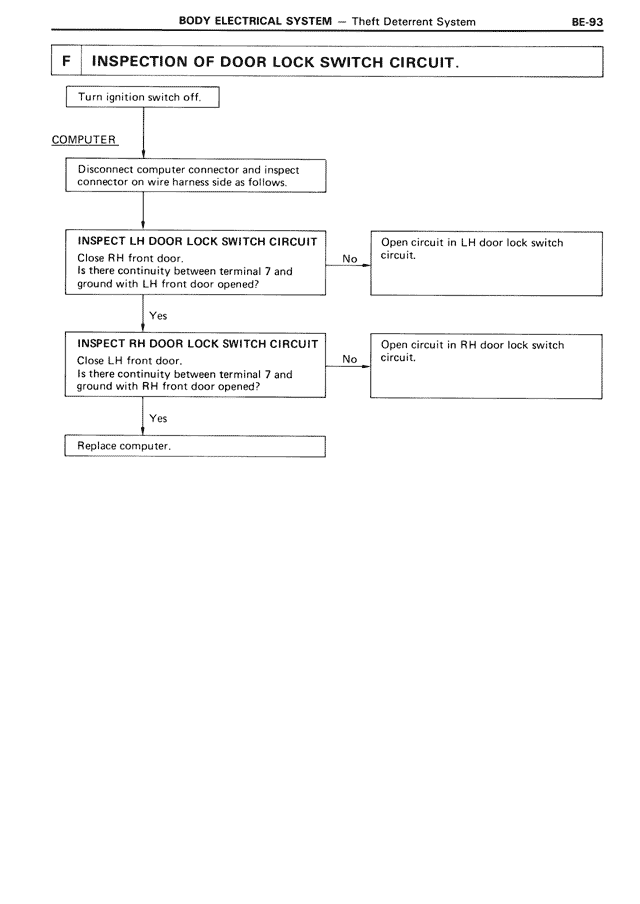

INSPECTION OF DOOR LOCK SWITCH CIRCUIT. — MK3 Supra Body Electrical System, page 93
100%
F INSPECTION OF DOOR LOCK SWITCH CIRCUIT. Turn ignition switch off. COMPUTER. Disconnect computer connector and inspect connector on wire harness side as follows. INSPECT LH DOOR LOCK SWITCH CIRCUIT Close RH front door. Is there continuity between terminal 7 and ground with LH front door opened? No → Open circuit in LH door lock switch circuit. ↓ Yes INSPECT RH DOOR LOCK SWITCH CIRCUIT Close LH front door. Is there continuity between terminal 7 and ground with RH front door opened? No → Open circuit in RH door lock switch circuit. ↓ Yes Replace computer.
