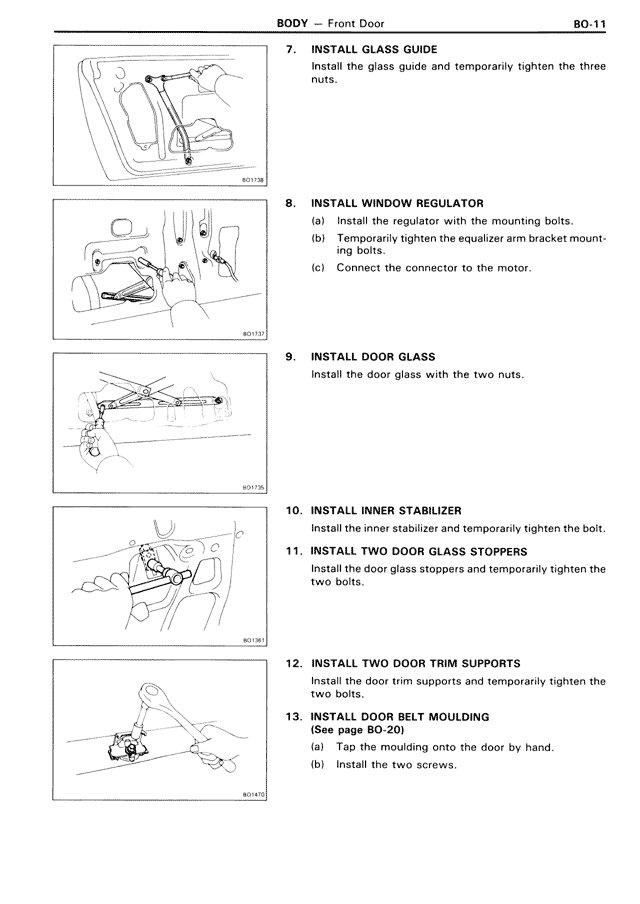

BODY — Front Door — MK3 Supra Body, page 11
100%
BODY — Front Door BO-11 7. INSTALL GLASS GUIDE Install the glass guide and temporarily tighten the three nuts. 8. INSTALL WINDOW REGULATOR (a) Install the regulator with the mounting bolts. (b) Temporarily tighten the arm bracket mounting bolts. (c) Connect the connector to the motor. 9. INSTALL DOOR GLASS Install the door glass with the two nuts. 10. INSTALL INNER STABILIZER Install the inner stabilizer and temporarily tighten the bolt. 11. INSTALL TWO DOOR GLASS STOPPERS Install the door glass stoppers and temporarily tighten the two bolts. 12. INSTALL TWO DOOR TRIM SUPPORTS Install the door trim supports and temporarily tighten the two bolts. 13. INSTALL DOOR BELT MOULDING (See page BO-20) (a) Tap the moulding onto the door by hand. (b) Install the two screws.
