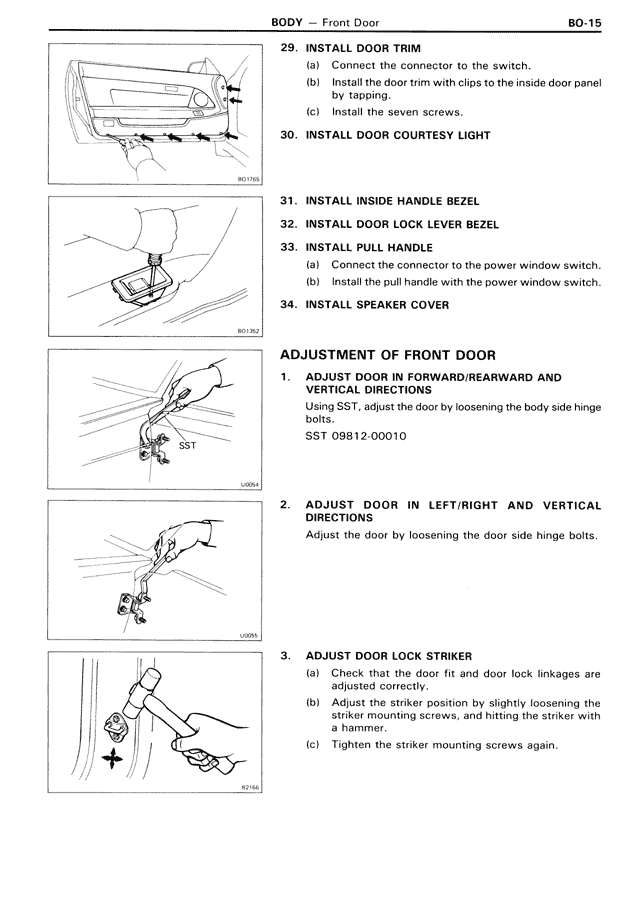

BODY — Front Door — MK3 Supra Body, page 15
100%
29. INSTALL DOOR TRIM (a) Connect the connector to the switch. (b) Install the door trim with clips to the inside door panel by tapping. (c) Install the seven screws. 30. INSTALL DOOR COURTESY LIGHT 31. INSTALL INSIDE HANDLE BEZEL 32. INSTALL DOOR LOCK LEVER BEZEL 33. INSTALL PULL HANDLE (a) Connect the connector to the power window switch. (b) Install the pull handle with the power window switch. 34. INSTALL SPEAKER COVER ADJUSTMENT OF FRONT DOOR 1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS Using SST, adjust the door by loosening the body side hinge bolts. SST 09812-00010 2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS Adjust the door by loosening the door side hinge bolts. 3. ADJUST DOOR LOCK STRIKER (a) Check that the door fit and door lock linkages are adjusted correctly. (b) Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a hammer. (c) Tighten the striker mounting screws again.
