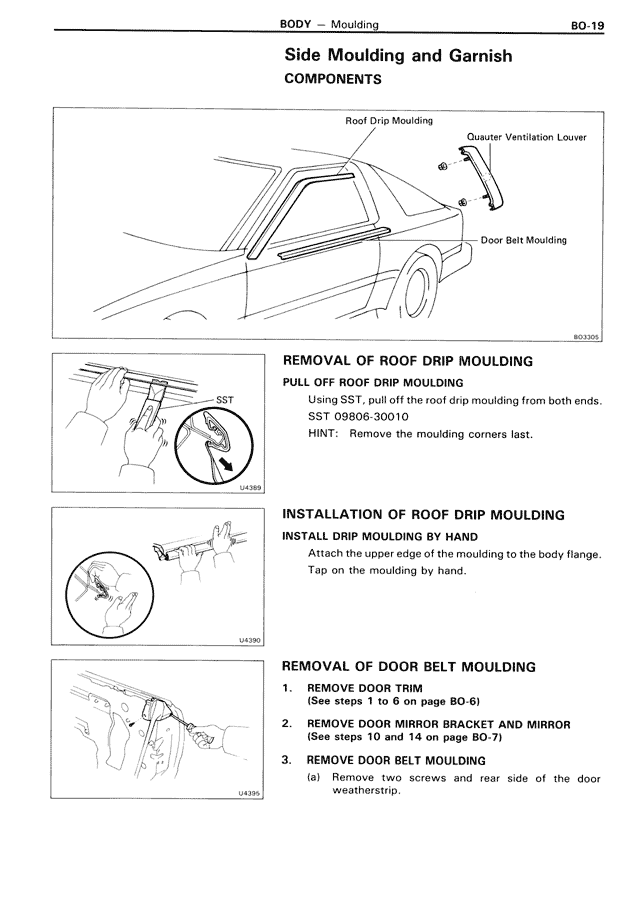

Side Moulding and Garnish
COMPONENTS
Roof Drip Moulding
Quarter Ventilation Louver
Door Belt Moulding
REMOVAL OF ROOF DRIP MOULDING
PULL OFF ROOF DRIP MOULDING
Using SST, pull off the roof drip moulding from both ends.
SST 09806-30010
HINT: Remove the moulding corners last.
INSTALLATION OF ROOF DRIP MOULDING
INSTALL DRIP MOULDING BY HAND
Attach the upper edge of the moulding to the body flange.
Tap on the moulding by hand.
REMOVAL OF DOOR BELT MOULDING
1. REMOVE DOOR TRIM
(See steps 1 to 6 on page BO-6)
2. REMOVE DOOR MIRROR BRACKET AND MIRROR
(See steps 10 and 14 on page BO-7)
3. REMOVE DOOR BELT MOULDING
(a) Remove two screws and rear side of the door
weatherstrip.
