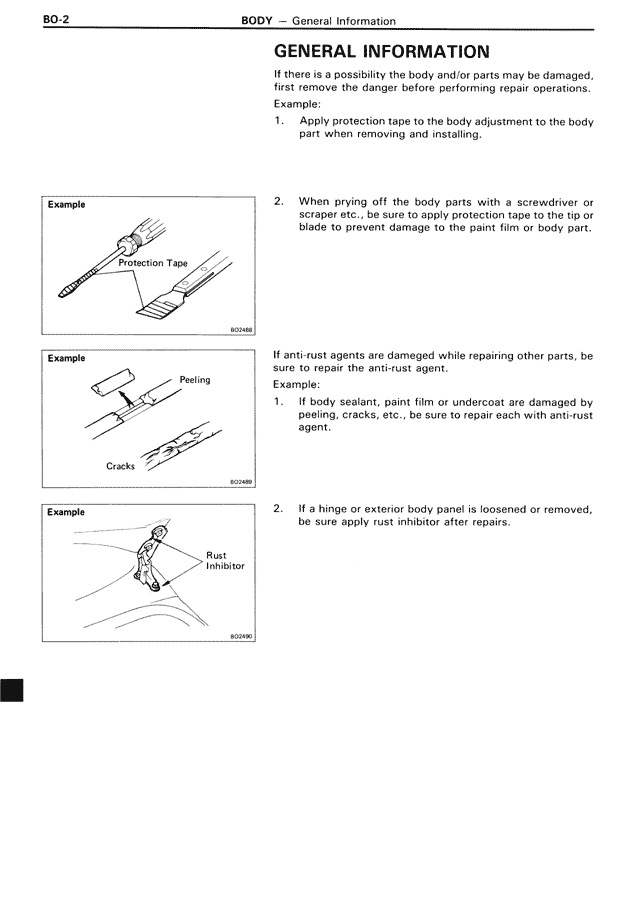

GENERAL INFORMATION — MK3 Supra Body, page 2
100%
GENERAL INFORMATION If there is a possibility the body and/or parts may be damaged, first remove the danger before performing repair operations. Example: 1. Apply protection tape to the body adjustment to the body part when removing and installing. Example [Diagram showing Protection Tape application] BO2466 2. When prying off the body parts with a screwdriver or scraper etc., be sure to apply protection tape to scraper tip or blade to prevent damage to the paint film or body part. Example [Diagram showing Peeling and Cracks] BO2469 If anti-rust agents are damaged while repairing other parts, be sure to repair the anti-rust agent. Example: 1. If body sealant, paint film or undercoat are damaged by peeling, cracks, etc., be sure to repair each with anti-rust agent. Example [Diagram showing Rust Inhibitor application] BO2490 2. If a hinge or exterior body panel is loosened or removed, be sure apply rust inhibitor after repairs.
