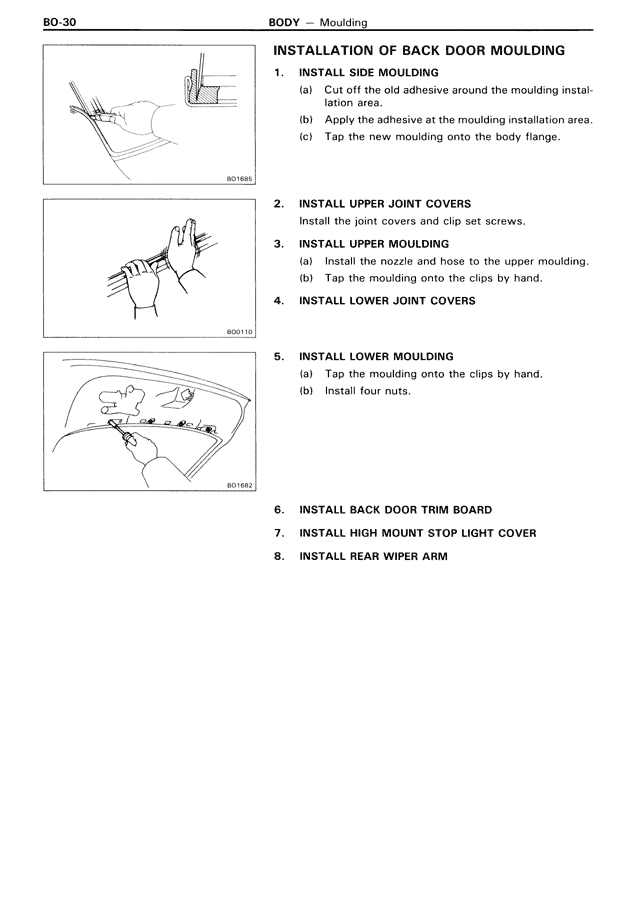

INSTALLATION OF BACK DOOR MOULDING
1. INSTALL SIDE MOULDING
(a) Cut off the old adhesive around the moulding installation area.
(b) Apply the adhesive at the moulding installation area.
(c) Tap the new moulding onto the body flange.
2. INSTALL UPPER JOINT COVERS
Install the joint covers and clip set screws.
3. INSTALL UPPER MOULDING
(a) Install the nozzle and hose to the upper moulding.
(b) Tap the moulding onto the clips by hand.
4. INSTALL LOWER JOINT COVERS
5. INSTALL LOWER MOULDING
(a) Tap the moulding onto the clips by hand.
(b) Install four nuts.
6. INSTALL BACK DOOR TRIM BOARD
7. INSTALL HIGH MOUNT STOP LIGHT COVER
8. INSTALL REAR WIPER ARM
