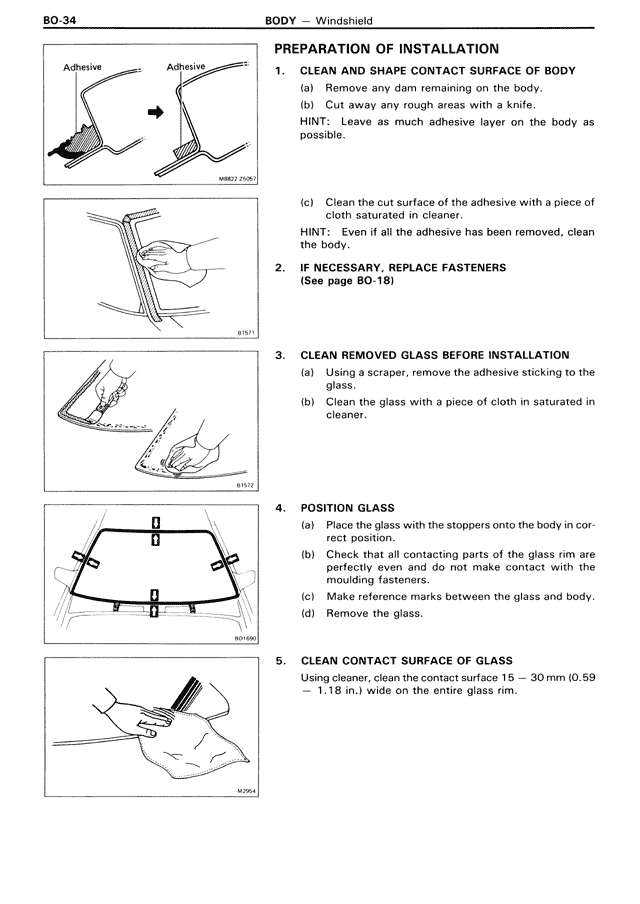

BO/Body — Preparation of Installation, page 34

BO-34                                    BODY — Windshield

PREPARATION OF INSTALLATION

1. CLEAN AND SHAPE CONTACT SURFACE OF BODY
   (a) Remove any dam remaining on the body.
   (b) Cut away any rough areas with a knife.
   HINT: Leave as much adhesive layer on the body as
   possible.

   (c) Clean the cut surface of the adhesive with a piece of
       cloth saturated in cleaner.
   HINT: Even if all the adhesive has been removed, clean
   the body.

2. IF NECESSARY, REPLACE FASTENERS
   (See page BO-18)

3. CLEAN REMOVED GLASS BEFORE INSTALLATION
   (a) Using a scraper, remove the adhesive sticking to the
       glass.
   (b) Clean the glass with a piece of cloth in saturated in
       cleaner.

4. POSITION GLASS
   (a) Place the glass with the stoppers onto the body in cor-
       rect position.
   (b) Check that all contacting parts of the glass rim are
       perfectly even and do not make contact with the
       moulding fasteners.
   (c) Make reference marks between the glass and body.
   (d) Remove the glass.

5. CLEAN CONTACT SURFACE OF GLASS
   Using cleaner, clean the contact surface 15 — 30 mm (0.59
   — 1.18 in.) wide on the entire glass rim.
