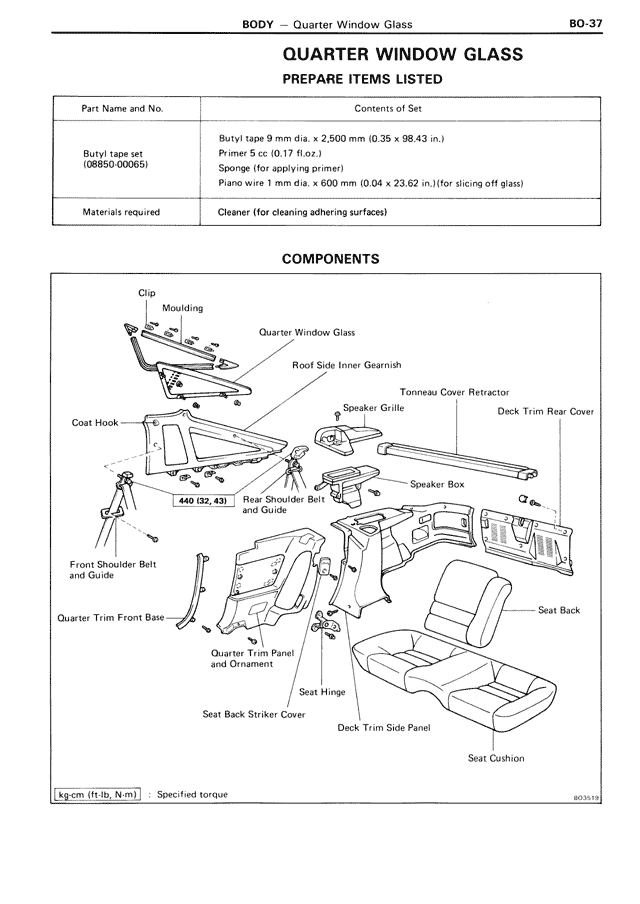

QUARTER WINDOW GLASS
PREPARE ITEMS LISTED
Part Name and No. | Contents of Set
Butyl tape set
(08850-00065) | Butyl tape 9 mm dia. x 2,500 mm (0.35 x 98.43 in.)
Primer 5 cc (0.17 fl.oz.)
Sponge (for applying primer)
Piano wire 1 mm dia. x 600 mm (0.04 x 23.62 in.) (for slicing off glass)
Materials required | Cleaner (for cleaning adhering surfaces)
COMPONENTS
Clip
Moulding
Quarter Window Glass
Roof Side Inner Garnish
Tonneau Cover Retractor
Coat Hook
Speaker Grille
Deck Trim Rear Cover
Speaker Box
Rear Shoulder Belt
and Guide
Front Shoulder Belt
and Guide
Quarter Trim Front Base
Quarter Trim Panel
Rear Ornament
Seat Hinge
Seat Back Striker Cover
Seat Back
Deck Trim Side Panel
Seat Cushion
kg-cm (ft-lb, N·m) : Specified torque
BO353/1
