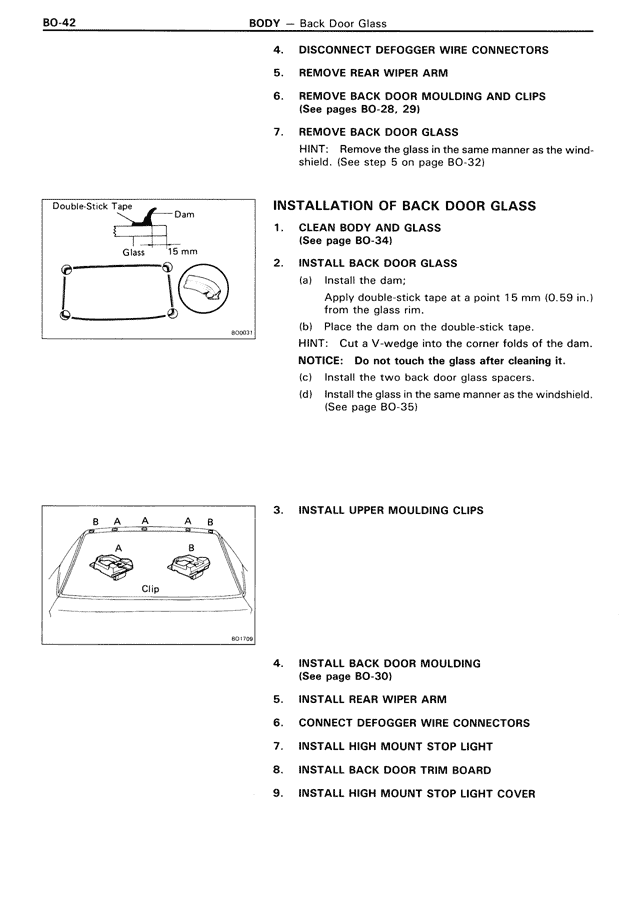

4. DISCONNECT DEFOGGER WIRE CONNECTORS 5. REMOVE REAR WIPER ARM 6. REMOVE BACK DOOR MOULDING AND CLIPS (See pages BO-28, 29) 7. REMOVE BACK DOOR GLASS HINT: Remove the glass in the same manner as the wind-shield. (See step 5 on page BO-32) Double-Stick Tape Dam Glass 15 mm BO9091 INSTALLATION OF BACK DOOR GLASS 1. CLEAN BODY AND GLASS (See page BO-34) 2. INSTALL BACK DOOR GLASS (a) Install the dam; Apply double-stick tape at a point 15 mm (0.59 in.) from the glass rim. (b) Place the dam on the double-stick tape. HINT: Cut a V-wedge into the corner folds of the dam. NOTICE: Do not touch the glass after cleaning it. (c) Install the two back door glass spacers. (d) Install the glass in the same manner as the windshield. (See page BO-35) B A A A B A B Clip BO1109 3. INSTALL UPPER MOULDING CLIPS 4. INSTALL BACK DOOR MOULDING (See page BO-30) 5. INSTALL REAR WIPER ARM 6. CONNECT DEFOGGER WIRE CONNECTORS 7. INSTALL HIGH MOUNT STOP LIGHT 8. INSTALL BACK DOOR TRIM BOARD 9. INSTALL HIGH MOUNT STOP LIGHT COVER
