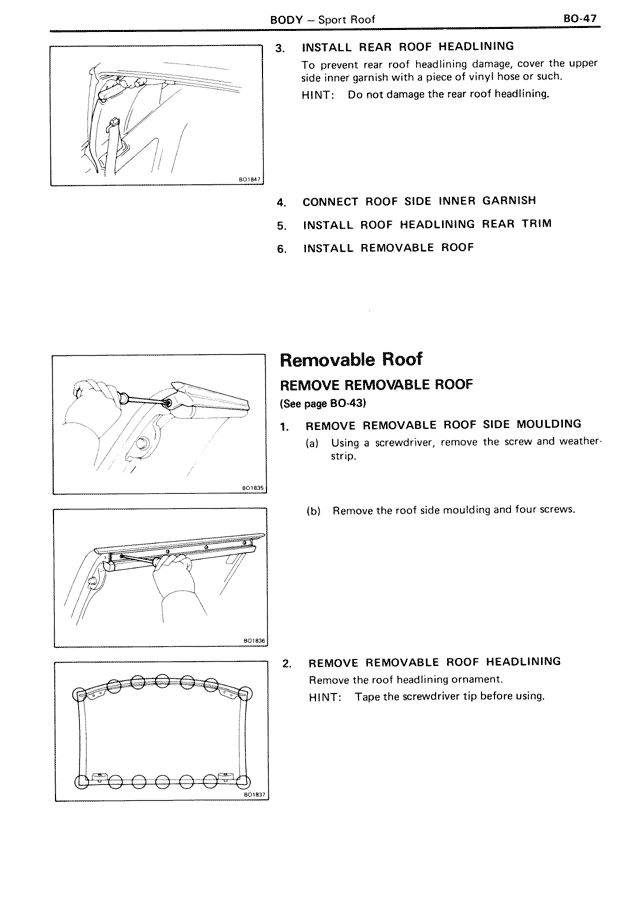

BODY — Sport Roof — MK3 Supra Body, page 47
100%
BODY — Sport Roof BO-47 3. INSTALL REAR ROOF HEADLINING To prevent rear roof headlining damage, cover the upper side inner garnish with a piece of vinyl hose or such. HINT: Do not damage the rear roof headlining. 4. CONNECT ROOF SIDE INNER GARNISH 5. INSTALL ROOF HEADLINING REAR TRIM 6. INSTALL REMOVABLE ROOF Removable Roof REMOVE REMOVABLE ROOF (See page BO-43) 1. REMOVE REMOVABLE ROOF SIDE MOULDING (a) Using a screwdriver, remove the screw and weather-strip. (b) Remove the roof side moulding and four screws. 2. REMOVE REMOVABLE ROOF HEADLINING Remove the roof headlining ornament. HINT: Tape the screwdriver tip before using.
