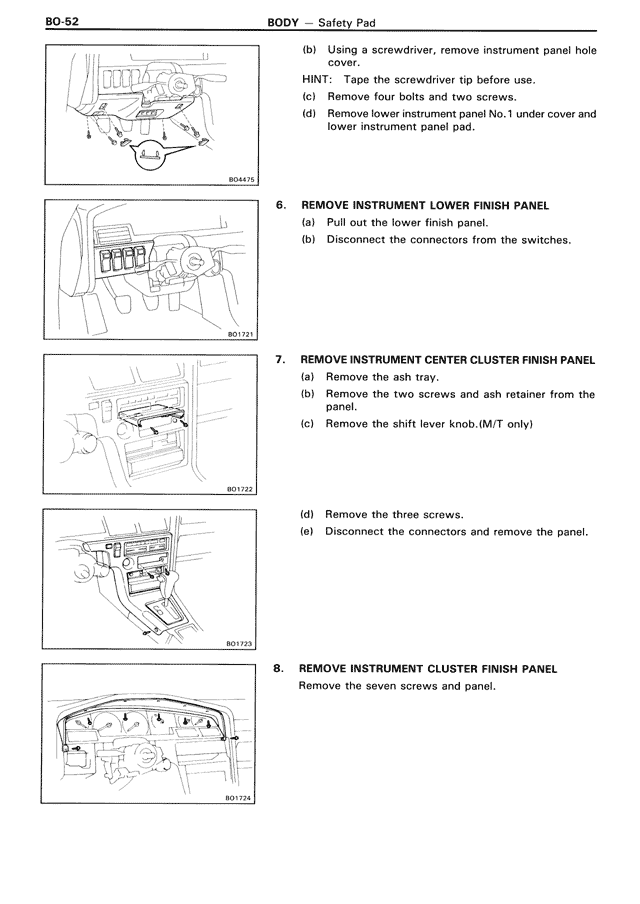

BO-52
BODY — Safety Pad
(b) Using a screwdriver, remove instrument panel hole cover.
HINT: Tape the screwdriver tip before use.
(c) Remove four bolts and two screws.
(d) Remove lower instrument panel No.1 under cover and lower instrument panel pad.
6. REMOVE INSTRUMENT LOWER FINISH PANEL
(a) Pull out the lower finish panel.
(b) Disconnect the connectors from the switches.
7. REMOVE INSTRUMENT CENTER CLUSTER FINISH PANEL
(a) Remove the ash tray.
(b) Remove the two screws and ash retainer from the panel.
(c) Remove the shift lever knob.(M/T only)
(d) Remove the three screws.
(e) Disconnect the connectors and remove the panel.
8. REMOVE INSTRUMENT CLUSTER FINISH PANEL
Remove the seven screws and panel.
BO1475
BO1721
BO1722
BO1723
BO1724
