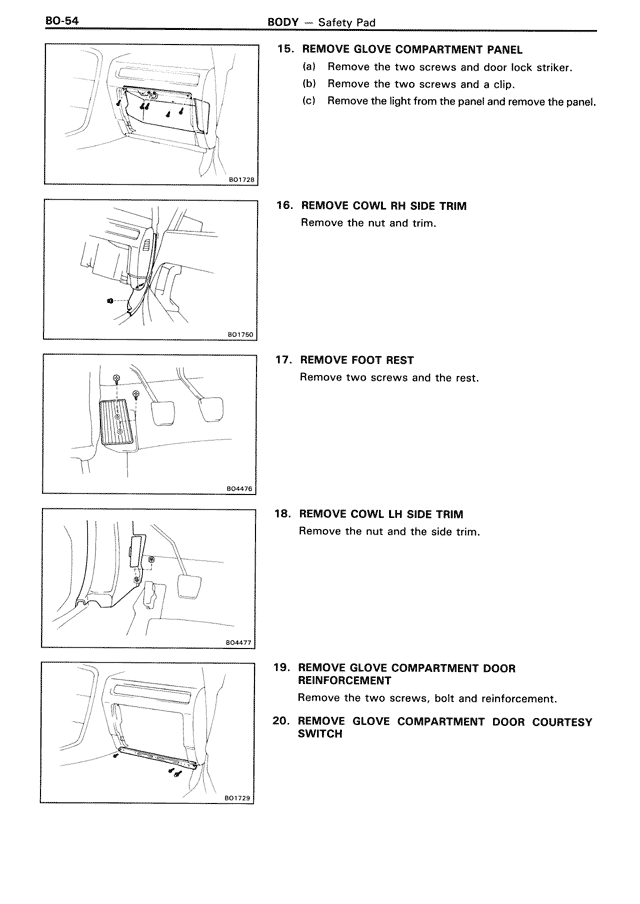

BODY — Safety Pad — MK3 Supra Body, page 54
100%
15. REMOVE GLOVE COMPARTMENT PANEL (a) Remove the two screws and door lock striker. (b) Remove the two screws and a clip. (c) Remove the light from the panel and remove the panel. 16. REMOVE COWL RH SIDE TRIM Remove the nut and trim. 17. REMOVE FOOT REST Remove two screws and the rest. 18. REMOVE COWL LH SIDE TRIM Remove the nut and the side trim. 19. REMOVE GLOVE COMPARTMENT DOOR REINFORCEMENT Remove the two screws, bolt and reinforcement. 20. REMOVE GLOVE COMPARTMENT DOOR COURTESY SWITCH
