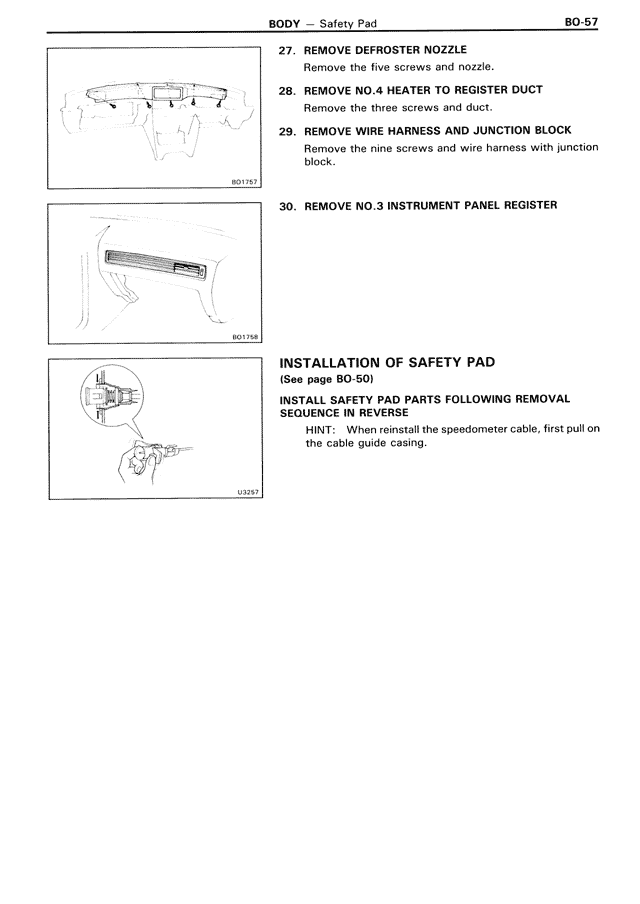

BODY — Safety Pad — MK3 Supra Body, page 57
100%
27. REMOVE DEFROSTER NOZZLE Remove the five screws and nozzle. 28. REMOVE NO.4 HEATER TO REGISTER DUCT Remove the three screws and duct. 29. REMOVE WIRE HARNESS AND JUNCTION BLOCK Remove the nine screws and wire harness with junction block. 30. REMOVE NO.3 INSTRUMENT PANEL REGISTER INSTALLATION OF SAFETY PAD (See page BO-50) INSTALL SAFETY PAD PARTS FOLLOWING REMOVAL SEQUENCE IN REVERSE HINT: When reinstall the speedometer cable, first pull on the cable guide casing.
