BR/Brake System — (w/ Anti-lock Brake System) Components, page 15

BRAKE SYSTEM — Master Cylinder                                BR-15

(w/ Anti-lock Brake System)

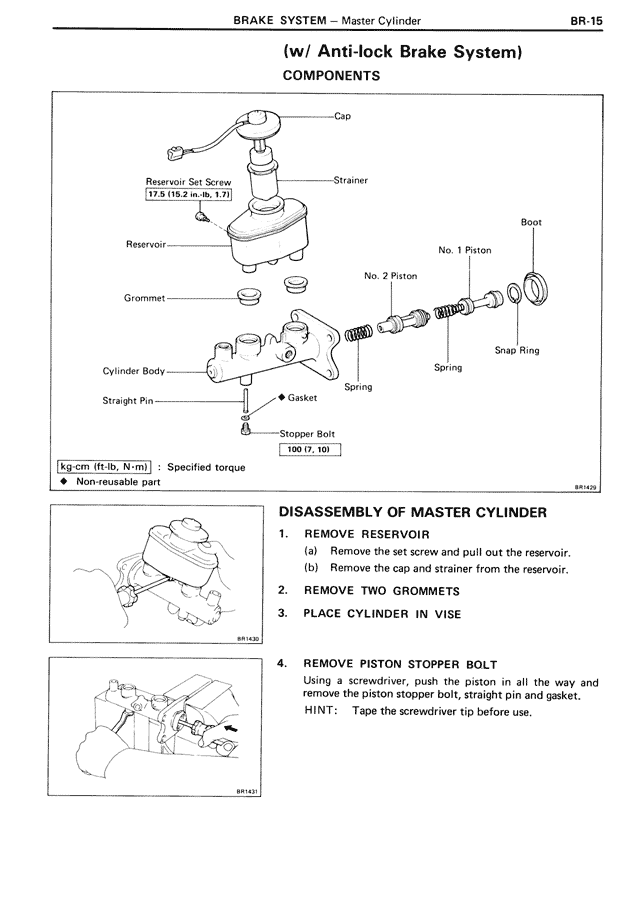

COMPONENTS

[Diagram showing master cylinder components with labels:]
Cap
Reservoir Set Screw
17.5 {1.8 x m, 13}
Strainer
Reservoir
Boot
No. 1 Piston
No. 2 Piston
Snap Ring
Spring
Grommet
Cylinder Body
Spring
Gasket
Straight Pin
Stopper Bolt
100 {7, 10}

kg·cm {ft·lb, N·m} : Specified torque
♦ Non-reusable part

BR15/24

DISASSEMBLY OF MASTER CYLINDER

1. REMOVE RESERVOIR
   (a) Remove the set screw and pull out the reservoir.
   (b) Remove the cap and strainer from the reservoir.

2. REMOVE TWO GROMMETS

3. PLACE CYLINDER IN VISE

BR15/25

4. REMOVE PISTON STOPPER BOLT
   Using a screwdriver, push the piston in all the way and
   remove the piston stopper bolt, straight pin and gasket.
   HINT: Tape the screwdriver tip before use.

BR15/41
