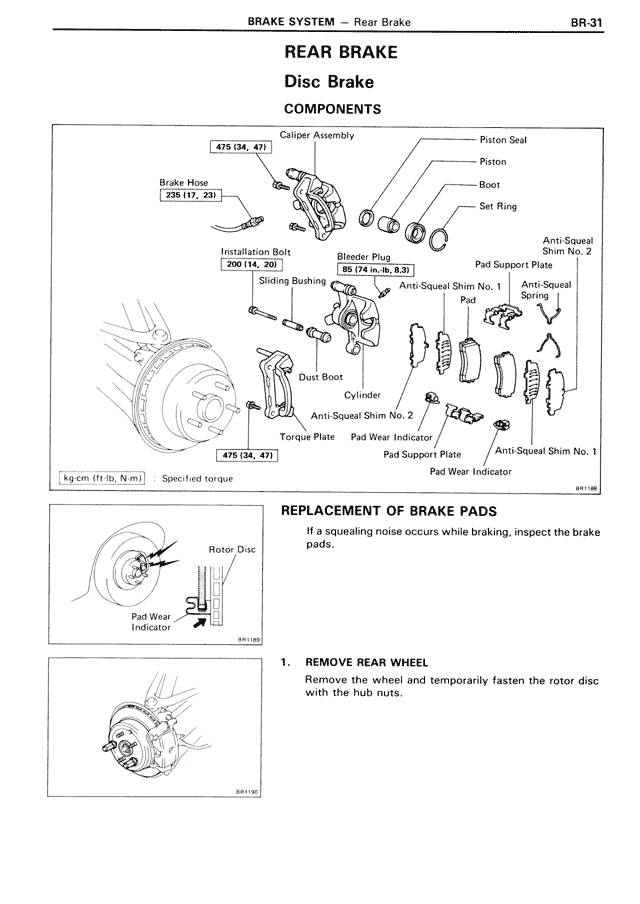

BRAKE SYSTEM — Rear Brake
BR-31
REAR BRAKE
Disc Brake
COMPONENTS
Caliper Assembly
475 (34, 47)
Brake Hose
235 (17, 23)
Piston Seal
Piston
Boot
Set Ring
Anti-Squeal Shim No. 2
Pad Support Plate
Installation Bolt
200 (14, 20)
Bleeder Plug
BR (74 in.-lb, 8.3)
Anti-Squeal Shim No. 1
Pad
Anti-Squeal Spring
Sliding Bushing
Dust Boot
Cylinder
Anti-Squeal Shim No. 2
Torque Plate
475 (34, 47)
Pad Wear Indicator
Pad Support Plate
Pad Wear Indicator
Anti-Squeal Shim No. 1
kg·cm (ft·lb, N·m) : Specified torque
BR1/BR
REPLACEMENT OF BRAKE PADS
If a squealing noise occurs while braking, inspect the brake pads.
Rotor Disc
Pad Wear Indicator
BR1/BR
1. REMOVE REAR WHEEL
Remove the wheel and temporarily fasten the rotor disc with the hub nuts.
BR1/SC
